Reassembly

1NZ-FE CHARGING: GENERATOR: REASSEMBLY

REASSEMBLY

1. INSTALL GENERATOR ROTOR ASSEMBLY
(a) Place the generator drive end frame on the generator rotor assembly.
NOTE: Do not drop the generator rotor assembly.

(b) Install the generator rotor assembly and the plate retainer.

(d) Install the 4 nuts and the cord clip.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)
(e) Install the 3 terminal insulators onto the generator rectifier end frame.

2. INSTALL GENERATOR HOLDER WITH RECTIFIER
(a) Install the generator holder with rectifier with the 3 screws.
Torque: 2.0 Nm (20 kgf-cm, 17 in-lbf)

3. INSTALL GENERATOR REGULATOR ASSEMBLY
(a) Install the generator regulator assembly with the 2 screws.
Torque: 2.0 Nm (20 kgf-cm, 17 in-lbf)

4. INSTALL GENERATOR BRUSH HOLDER ASSEMBLY
(a) Install the plate seal.
(b) Install the generator brush holder assembly with the 3 screws.
Torque: 2.0 Nm (20 kgf-cm, 17 in-lbf)
(c) Install the brush cover onto the generator brush holder assembly.
(d) Install the rear end cover with the 2 nuts.
Torque: 4.4 Nm (45 kgf-cm, 39 in-lbf)
(e) Install the rectifier plate with the nut and screw.
Torque: 4.4 Nm (45 kgf-cm, 39 in-lbf) for nut
Torque: 3.8 Nm (39 kgf-cm, 34 in-lbf) for bolt
(f) Install the terminal insulator with the nut.
Torque: 4.1 Nm (42 kgf-cm, 36 in-lbf)
5. INSTALL GENERATOR PULLEY
SST: 09820-63011
09820-06010
09820-06020

(a) Install the generator pulley onto the generator rotor shaft by tightening the generator pulley nut by hand.

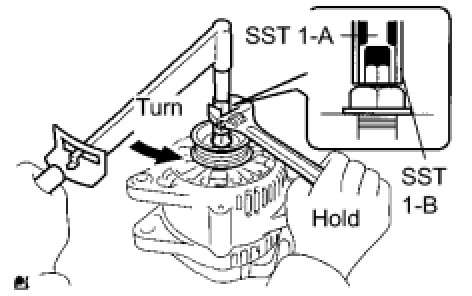

(b) Hold SST 1-A with a torque wrench, and tighten SST 1-B clockwise to the specified torque.
Torque: 39 Nm (398 kgf-cm, 29 ft-lbf)
NOTE: Check that SST is securely fitted onto the generator rotor shaft.

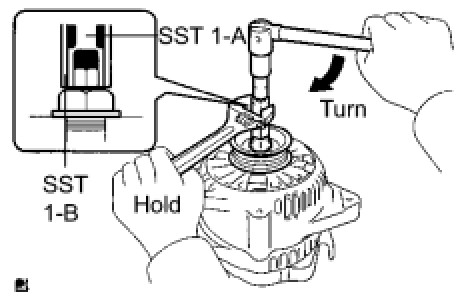

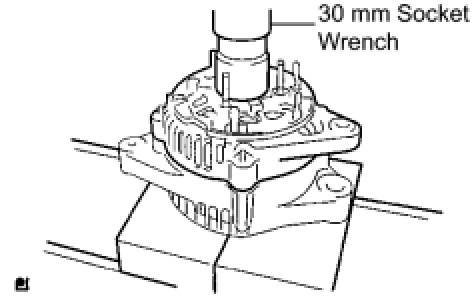

(e) Tighten the generator pulley nut by turning SST 1-A in the direction shown in the illustration.
Torque: 133 Nm (1356 kgf-cm, 98 ft-lbf)
(f) Remove the generator from SST 2.

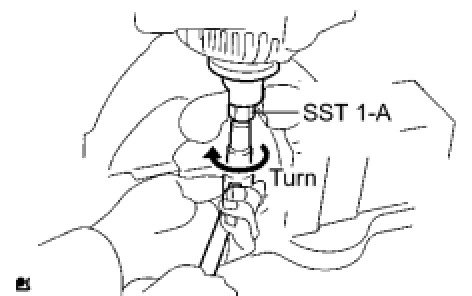

(g) Turn SST 1-B, and remove SST 1-A and B.
(h) Turn the generator pulley, and check that the generator pulley moves smoothly.
