Charging System: Service Precautions

1NZ-FE CHARGING: CHARGING SYSTEM: PRECAUTION

PRECAUTION

1. Check that the battery cables are connected to the correct terminals.
2. Disconnect the battery cables when the battery is given a quick charge.
3. Never disconnect the battery while the engine is running.

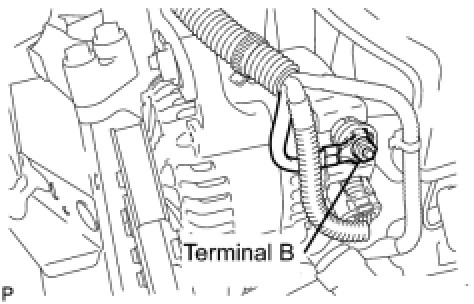

4. Check that the charging cable is tightly connected to terminal B of the generator.
