Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2009
>>
Yaris L4-1.5L (1NZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

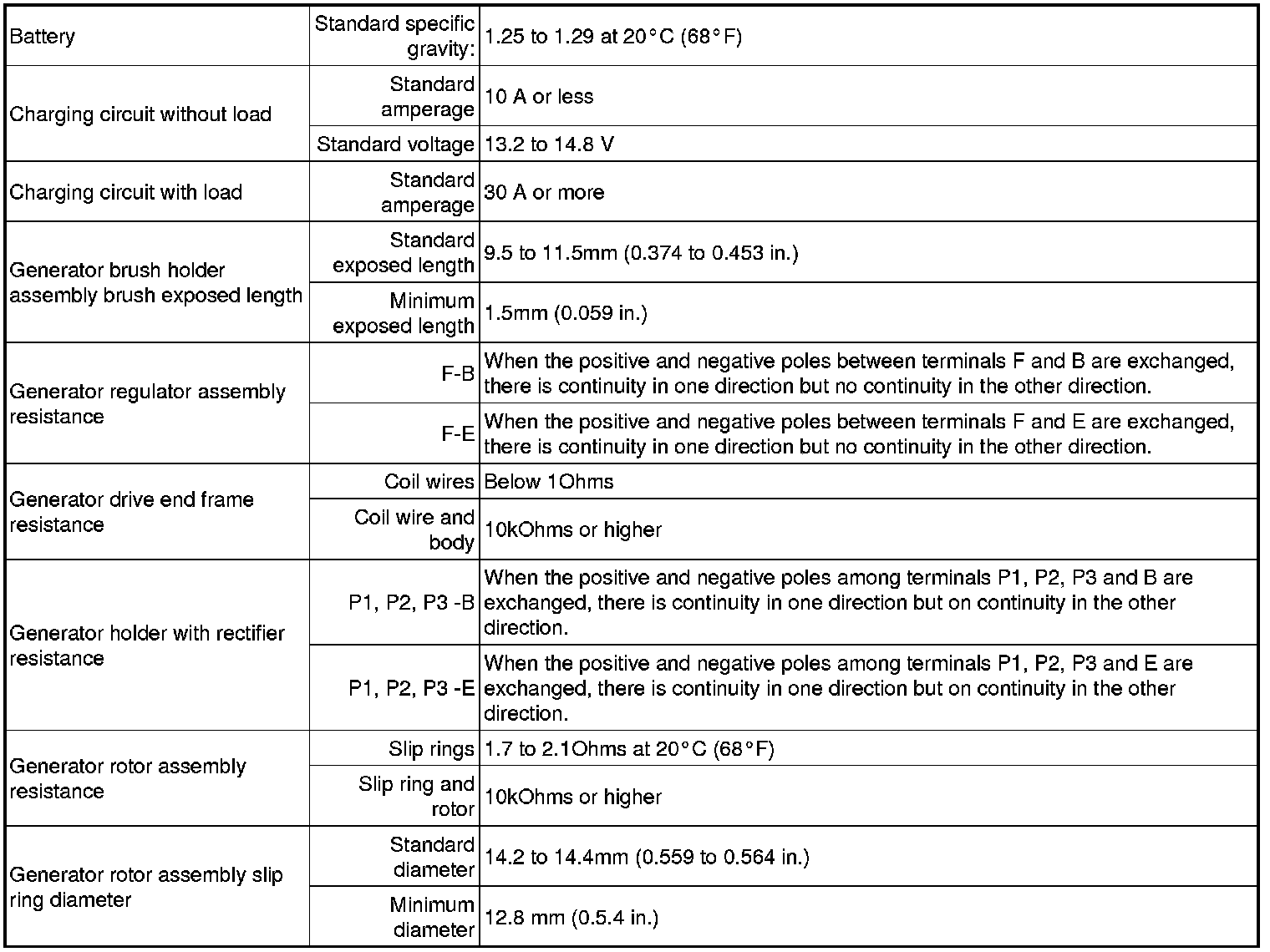

SERVICE SPECIFICATIONS: 1NZ-FE CHARGING: SERVICE DATA
SERVICE DATA
