Ignition Relay

1NZ-FE STARTING: IGNITION RELAY: INSPECTION

INSPECTION





1. INSPECT IGNITION RELAY
(a) Check the resistance.

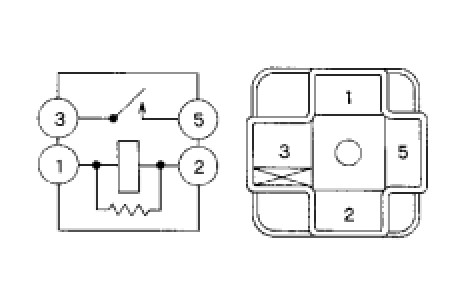

(1) Using an ohmmeter, measure the resistance between the terminals.

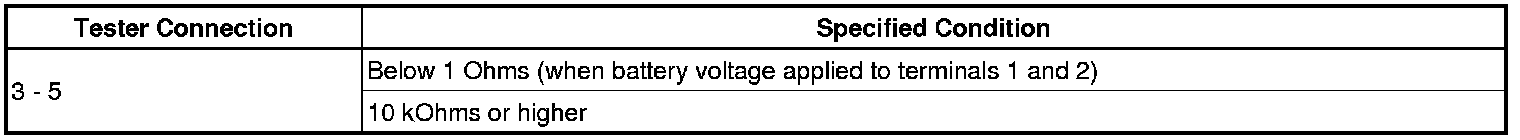

Standard resistance:






If the result is not as specified, replace the relay.
