Steering Column Assembly (for Hatchback)
>>
Components
Components
STEERING COLUMN
: STEERING COLUMN ASSEMBLY (for Hatchback): COMPONENTS
COMPONENTS

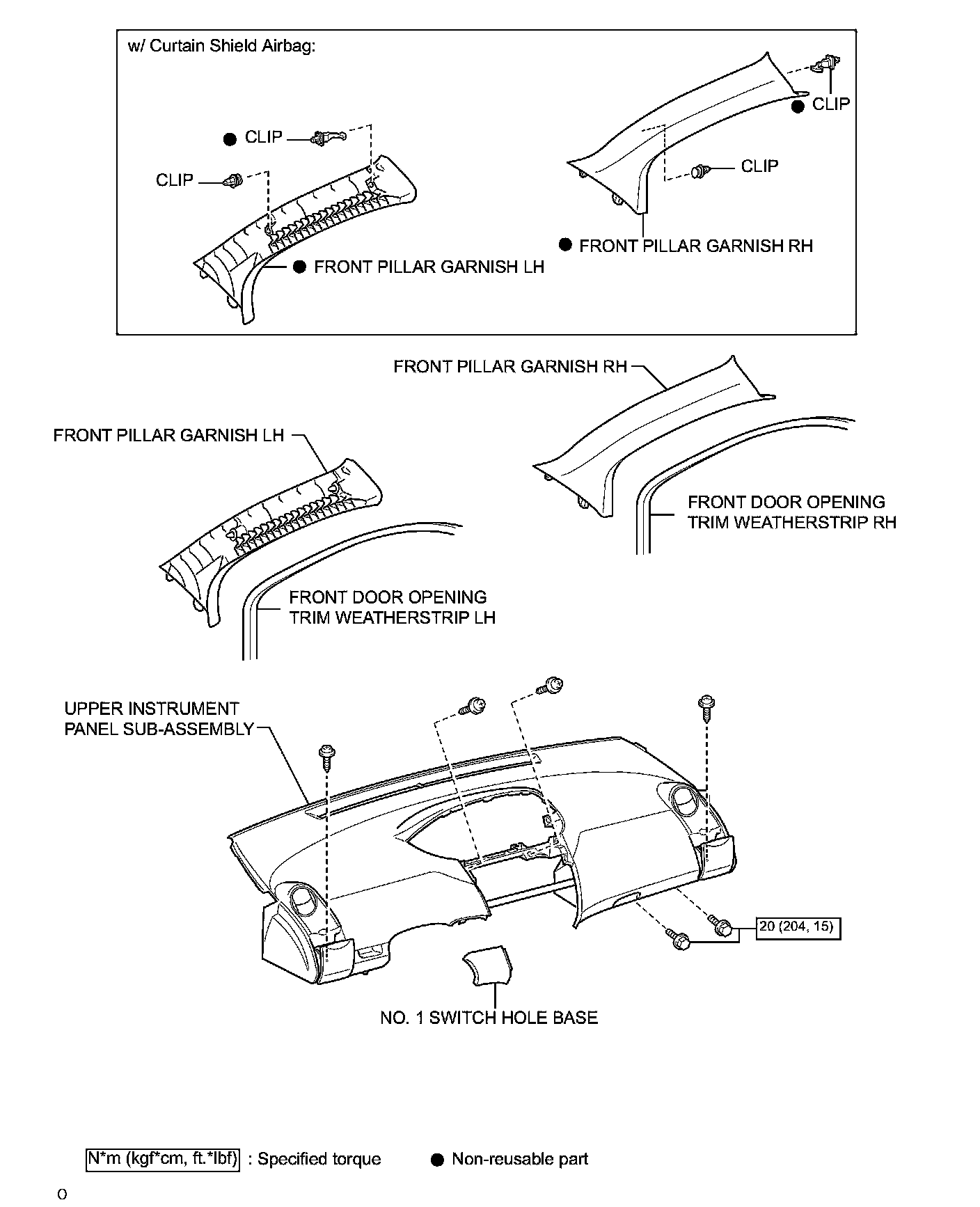

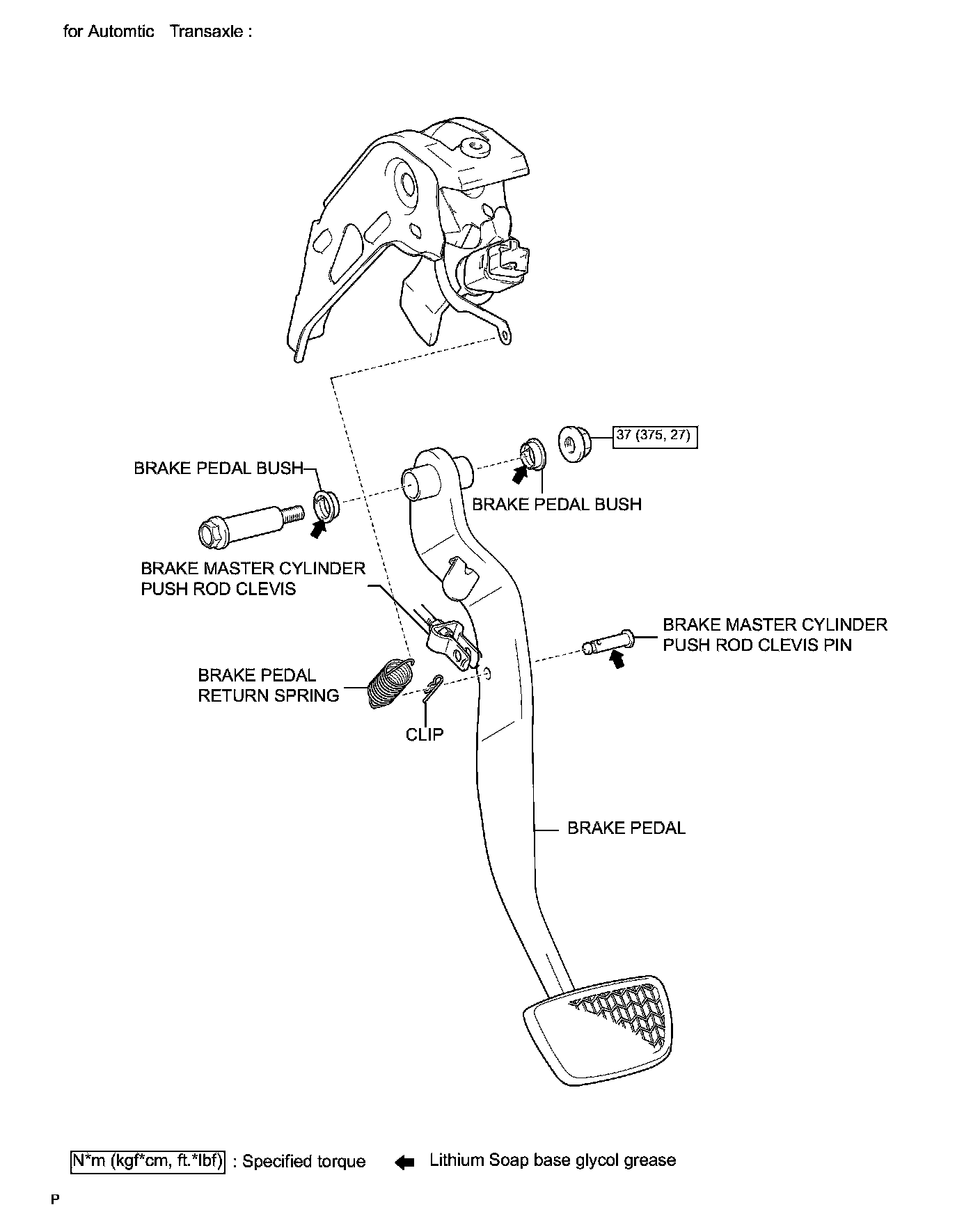

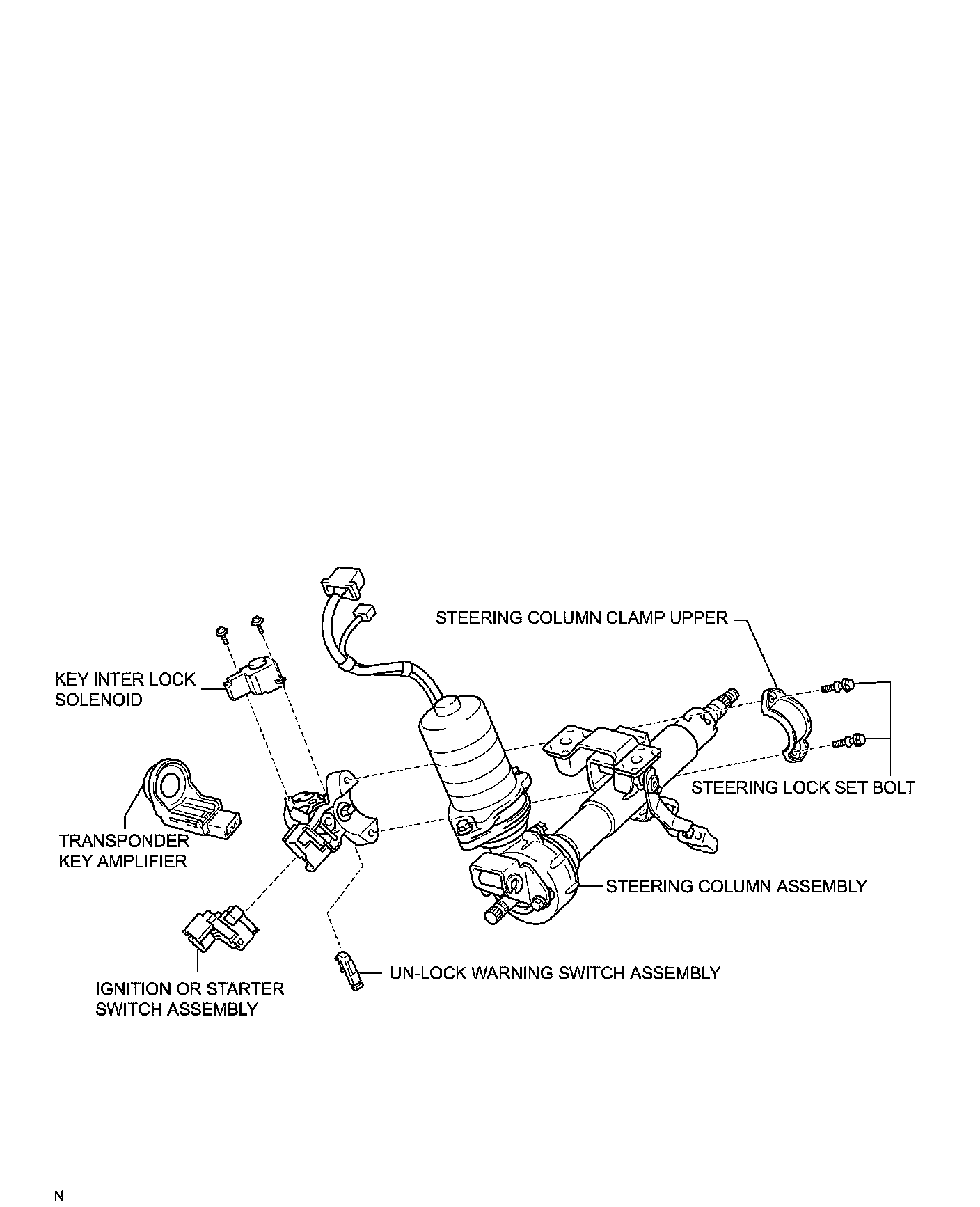

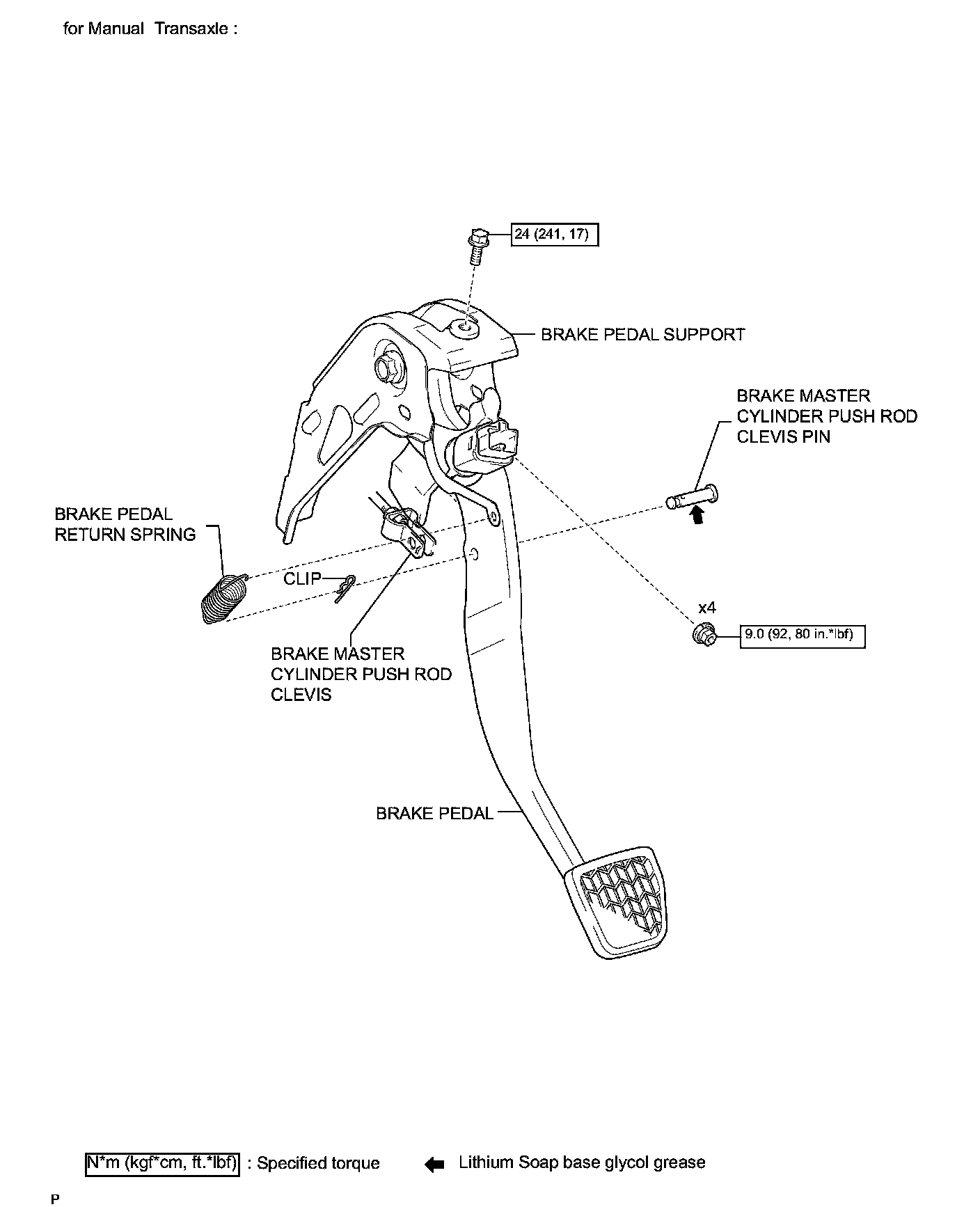

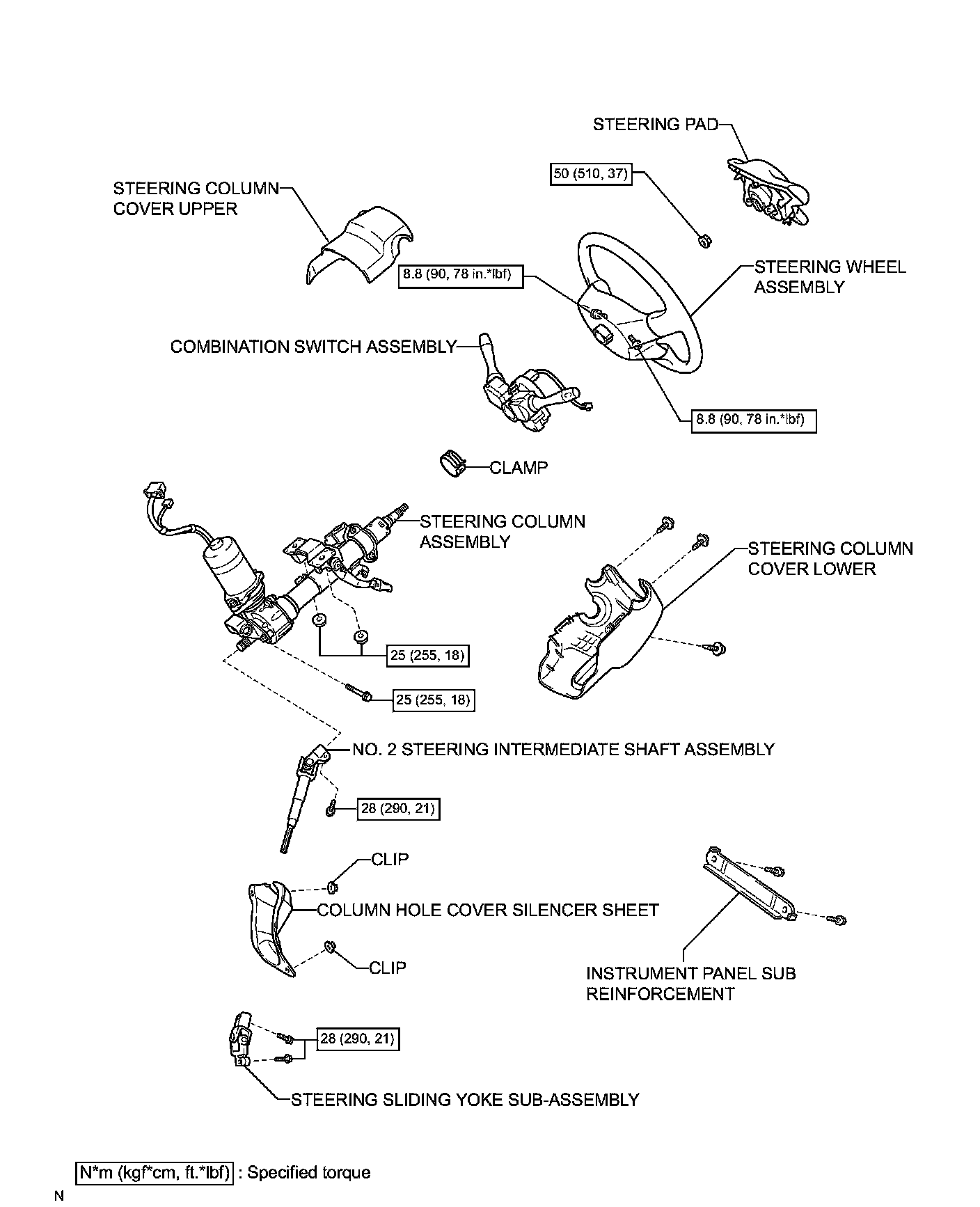

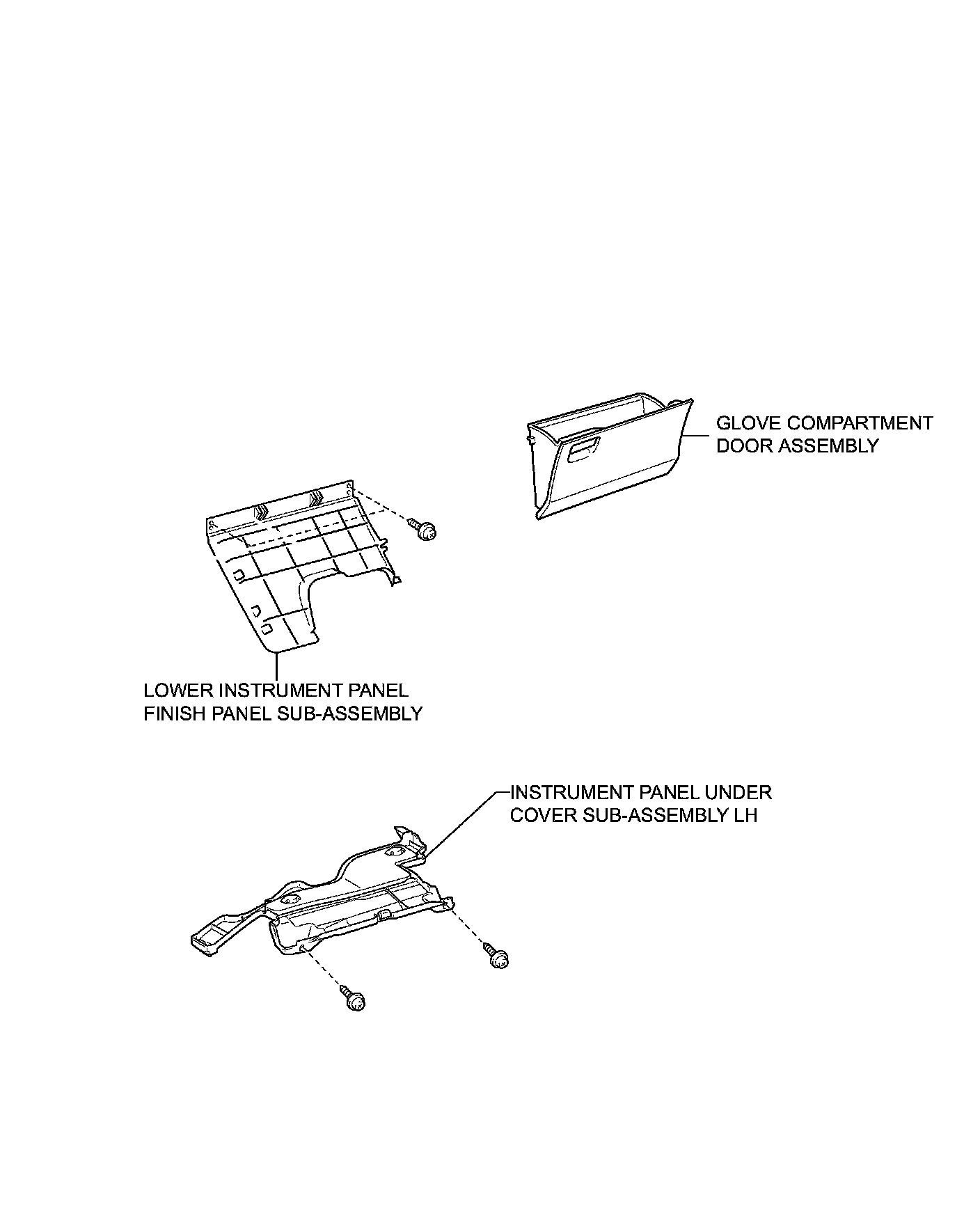

ILLUSTRATION
