Diesel Data: Automotive Repair
Home >> Toyota >> 2009 >> Yaris L4-1.5L (1NZ-FE) >> Repair and Diagnosis >> Steering and Suspension >> Steering >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Electronic Power Steering System

Electronic Power Steering System

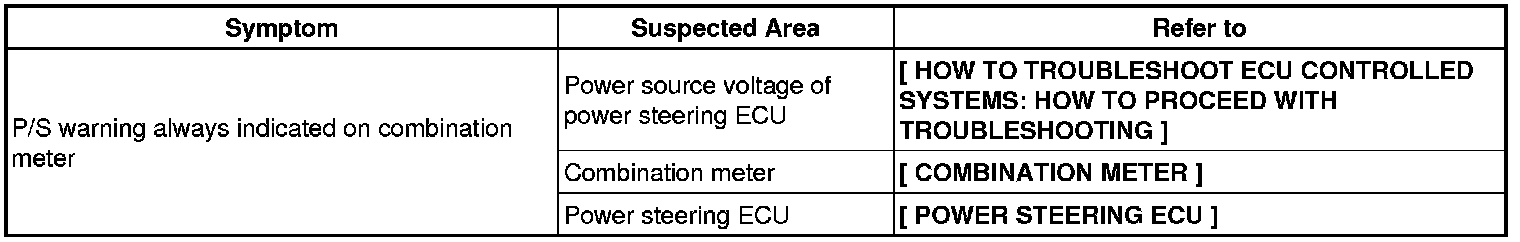

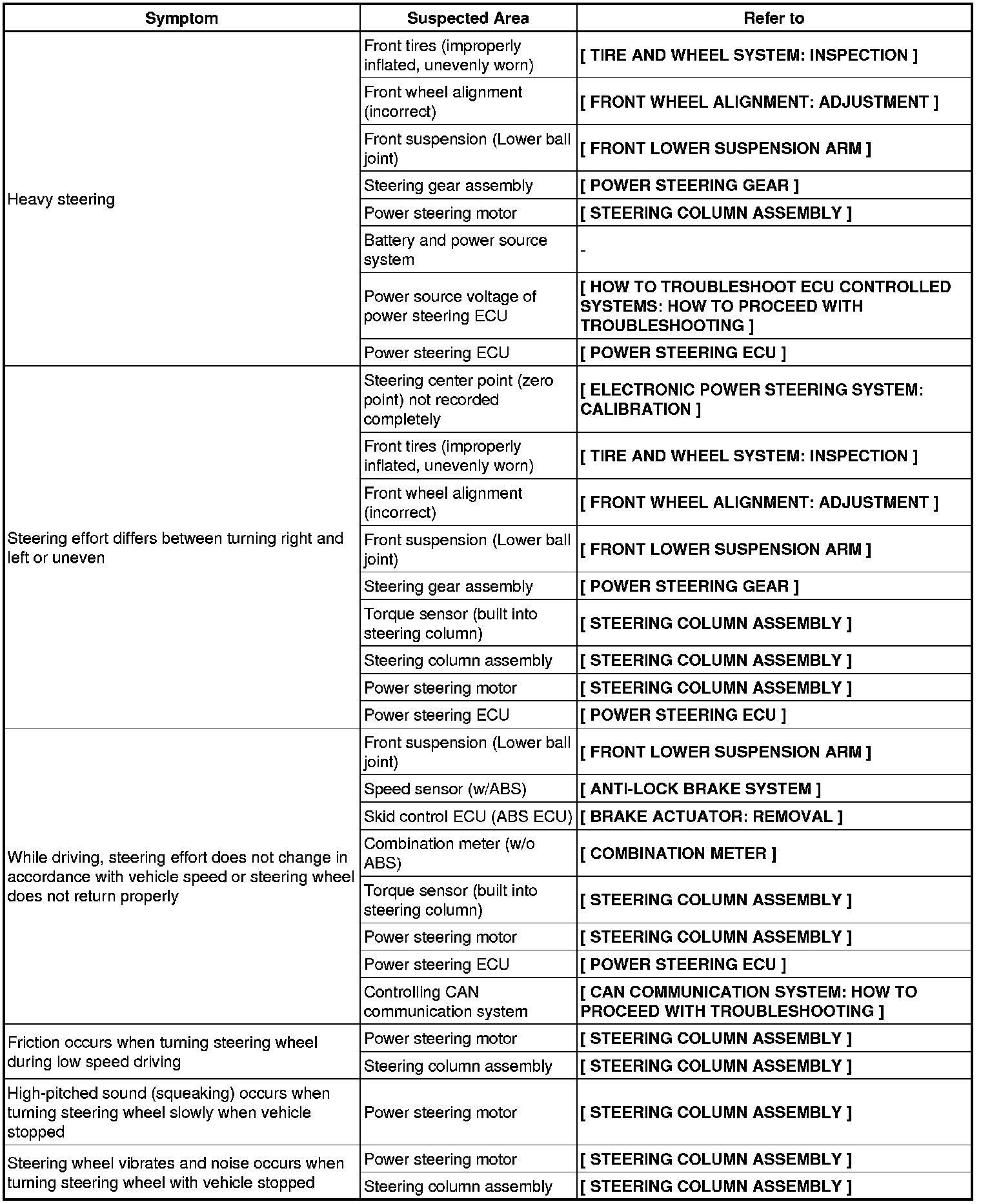

POWER STEERING: ELECTRONIC POWER STEERING SYSTEM: PROBLEM SYMPTOMS TABLE

PROBLEM SYMPTOMS TABLE

for Hatchback









for Sedan
