SUSPENSION: REAR AXLE BEAM: REPLACEMENT

REPLACEMENT





1. REMOVE REAR AXLE CARRIER BUSH LH

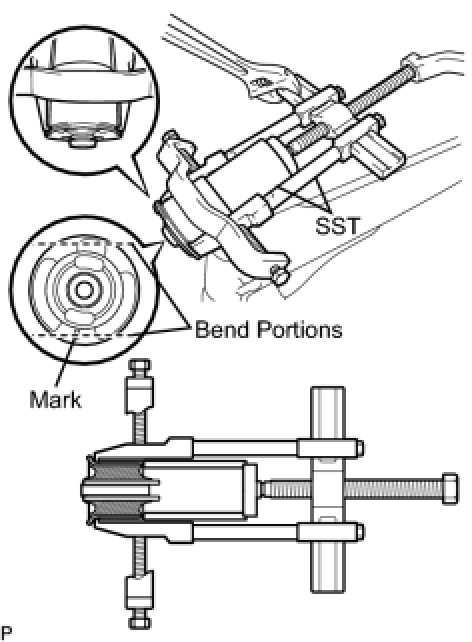

(a) Place a match mark on the axle beam with it aligned with the bush mark.
(b) Using a chisel and hammer, bend the 2 portions of the bush rib.
NOTE: Bend the bush rib until the claw of SST can be suspended.

(c) Using SST, remove the bush from the axle beam.
SST: 09950-40011
09951-04020
09952-04010
09953-04030
09954-04020
09955-04011
09957-04010
09958-04011
SST: 09612-30012
SST: 09950-60010
09951-00590
NOTE: Apply paint to any scratches on the rear axle beam.

2. REMOVE REAR AXLE CARRIER BUSH RH
HINT: The removal procedure for the RH side is the same as that for the LH side.

3. INSTALL REAR AXLE CARRIER BUSH LH





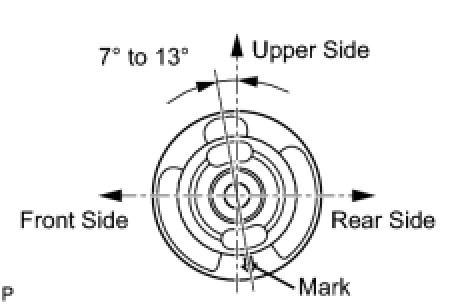

(a) Align the matchmarks on a new bush and the axle beam and provisionally install the bush onto the axle beam, as shown in the illustration.
NOTE: Install the bush in the same orientation as the old one was prior to removal because they are directional.

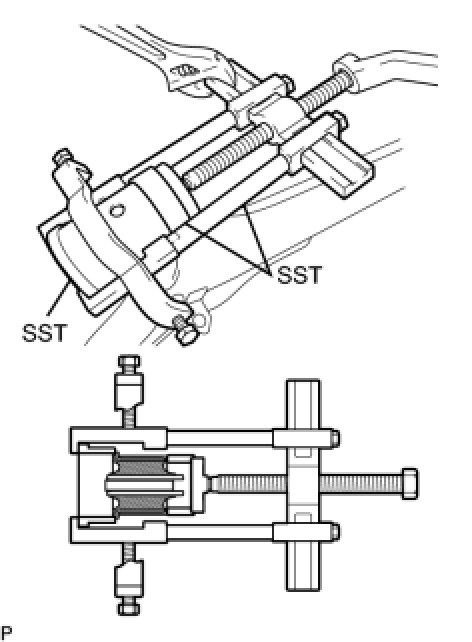

(b) Using SST, install the bush onto the axle beam.
SST: 09950-40011
09951-04020
09952-04010
09953-04030
09954-04030
09955-04051
09957-04010
09958-04011
SST: 09950-60020
09951-00810
09387-02010
SST: 09223-15020
NOTE: Do not damage the rubber portion when installing the bush.

4. INSTALL REAR AXLE CARRIER BUSH RH
HINT: The installation procedure for the RH side is the same as that for the LH side.
