SUSPENSION: FRONT LOWER SUSPENSION ARM (for RH Side): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE HOOD SUB-ASSEMBLY
Hatchback: Removal
Sedan: Removal
3. REMOVE FRONT WIPER ARM HEAD CAP
Hatchback: Removal
Sedan: Removal
4. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH
Hatchback: Removal
Sedan: Removal
5. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH
Hatchback: Removal
Sedan: Removal
6. REMOVE HOOD TO COWL TOP SEAL (for Hatchback) Removal
7. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan) Removal
8. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan) Removal
9. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Hatchback: Removal
Sedan: Removal
10. REMOVE COWL TOP VENTILATOR LOUVER LH (for Hatchback) Removal
11. REMOVE FRONT WIPER MOTOR AND LINK
Hatchback: Removal
Sedan: Removal
12. REMOVE COWL TO REGISTER DUCT SUB-ASSEMBLY (for Hatchback) Removal
13. REMOVE FRONT AIR SHUTTER SEAL (for Sedan) Removal
14. REMOVE OUTER COWL TOP PANEL
Hatchback: Removal
Sedan: Removal
15. POSITION WHEELS FACING STRAIGHT AHEAD
16. REMOVE FRONT WHEEL
17. REMOVE COLUMN HOLE COVER SILENCER SHEET Removal
18. REMOVE STEERING SLIDING YOKE SUB-ASSEMBLY Removal
19. REMOVE STEERING COLUMN HOLE COVER SUB-ASSEMBLY Removal
20. SEPARATE TIE ROD END SUB-ASSEMBLY LH Removal
21. SEPARATE TIE ROD END SUB-ASSEMBLY RH
HINT: The removal procedure for the RH side is the same as that for the LH side.

22. SEPARATE FRONT LOWER SUSPENSION ARM LH Removal
23. SEPARATE FRONT LOWER SUSPENSION ARM RH
HINT: The removal procedure for the RH side is the same as that for the LH side.

24. SEPARATE FRONT STABILIZER LINK ASSEMBLY LH Removal
25. SEPARATE FRONT STABILIZER LINK ASSEMBLY RH
HINT: The removal procedure for the RH side is the same as that for the LH side.

26. SUSPEND ENGINE ASSEMBLY Removal
27. REMOVE FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY Removal





28. REMOVE FRONT LOWER SUSPENSION ARM RH

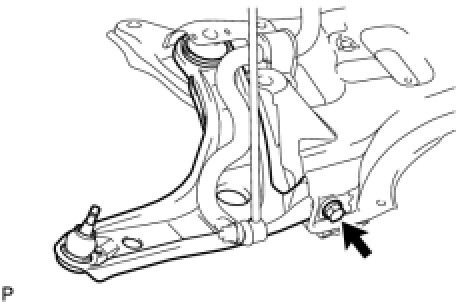

(a) Remove the bolt and lower arm.
