Installation

AXLE: FRONT AXLE HUB BOLT: INSTALLATION

INSTALLATION





1. INSTALL FRONT AXLE HUB BOLT

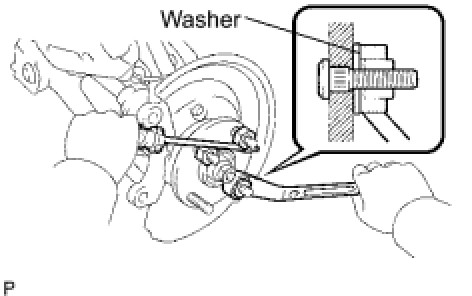

(a) Install the washer and the nut onto a new hub bolt, as shown in the illustration.
(b) Using a screwdriver or the equivalent to hold the axle hub, install the hub bolt by tightening the nut.
2. INSTALL FRONT DISC Installation
3. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY Installation
4. INSTALL FRONT WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
