Installation

AXLE: REAR AXLE HUB BOLT: INSTALLATION

INSTALLATION





1. INSTALL REAR AXLE HUB BOLT

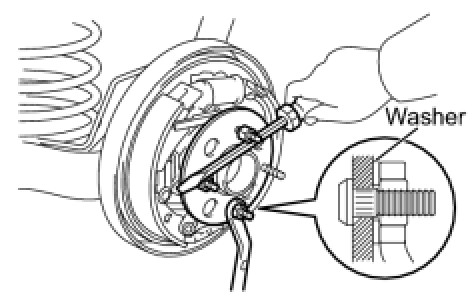

(a) Install the washer and the nut onto a new hub bolt as shown in the illustration.
(b) Using a screwdriver or the equivalent to hold the hub and bearing, install the hub bolt by tightening the nut.
2. INSTALL REAR BRAKE DRUM SUB-ASSEMBLY
3. ADJUST REAR DRUM BRAKE SHOE CLEARANCE Installation
4. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
