AXLE: REAR AXLE HUB BOLT: REMOVAL

REMOVAL

1. REMOVE REAR WHEEL
2. REMOVE REAR BRAKE DRUM SUB-ASSEMBLY Removal





3. REMOVE REAR AXLE HUB BOLT

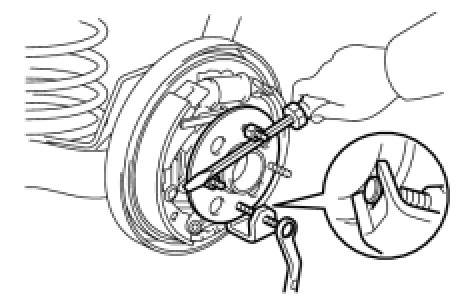

(a) Using SST and a screwdriver or the equivalent, remove the hub bolt.
SST: 09611-12010
