Disassembly

U340E AUTOMATIC TRANSAXLE: DIFFERENTIAL CASE: DISASSEMBLY

DISASSEMBLY

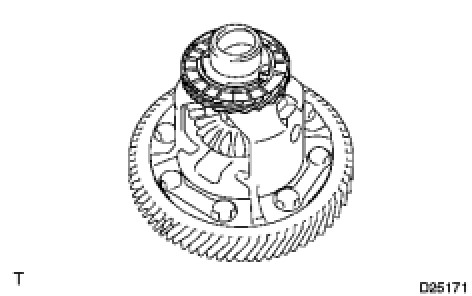

1. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

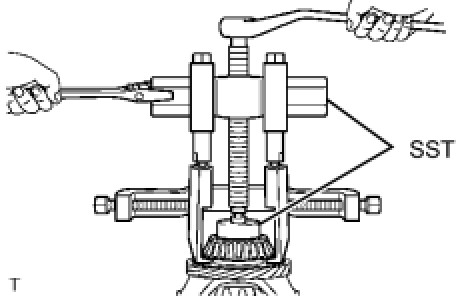

(a) Using SST, remove the front differential case front tapered roller bearing from the differential case.
SST: 09950-40011
09951-04010
09952-04010
09953-04030
09954-04010
09955-04061
09957-04010
09958-04011
SST: 09950-60010
09951-00390





(b) Using SST, remove the front differential case RH tapered roller bearing outer race from the transaxle housing.
SST: 09387-00041
09387-02020
09387-02010

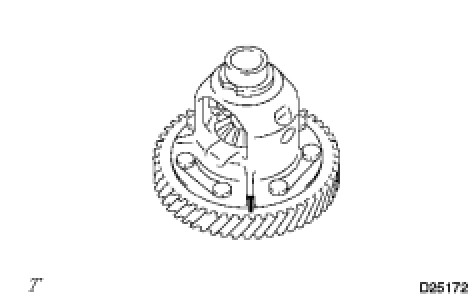

2. REMOVE SPEEDOMETER DRIVE GEAR





(a) Remove the speedometer drive gear from the differential case.
3. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING





(a) Using SST, remove the front differential case tapered roller bearing from the differential case.
SST: 09950-40011
09951-04010
09952-04010
09953-04020
09954-04010
09955-04061
09957-04010
09958-04011
SST: 09950-60010
09951-00430





(b) Using SST, remove the front differential case tapered roller bearing outer race from the transaxle case.
SST: 09612-65014
09612-01010
4. REMOVE FRONT DIFFERENTIAL RING GEAR





(a) Place matchmarks on the front differential ring gear and differential case.

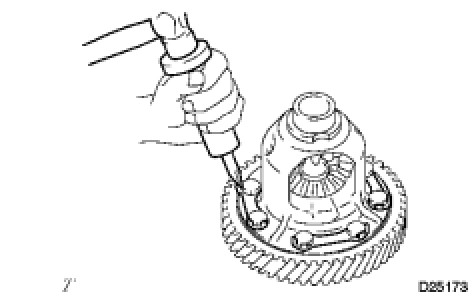

(b) Using SST and a hammer, release the lock plate.
SST: 09930-00010





(c) Remove the 8 bolts and the lock plate.





(d) Using a plastic hammer, remove the front differential ring gear from the differential case.
5. REMOVE FRONT DIFFERENTIAL PINION SHAFT STRAIGHT PIN





(a) Using a punch and a hammer, release the differential case.





(b) Using a pin punch and a hammer, remove the straight pin.





6. REMOVE FRONT NO. 1 DIFFERENTIAL PINION SHAFT
(a) Remove the pinion shaft from the front differential case.





7. REMOVE FRONT DIFFERENTIAL SIDE GEAR
(a) Remove the 2 pinions, 2 thrust washers, 2 side gears and 2 thrust washers No. 1 from the front differential case.
