U340E AUTOMATIC TRANSAXLE: TRANSMISSION CONTROL CABLE ASSEMBLY: REMOVAL

REMOVAL

1. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) Removal
2. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Removal
3. REMOVE REAR CONSOLE BOX COVER (for Hatchback) Removal
4. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Removal
5. REMOVE CONSOLE BOX CARPET Removal
6. REMOVE REAR CONSOLE BOX ASSEMBLY Removal
7. REMOVE BATTERY Removal
8. REMOVE BATTERY TRAY
9. REMOVE AIR CLEANER ASSEMBLY Removal
10. REMOVE AIR CLEANER BRACKET Removal

11. SEPARATE OXYGEN SENSOR CONNECTOR

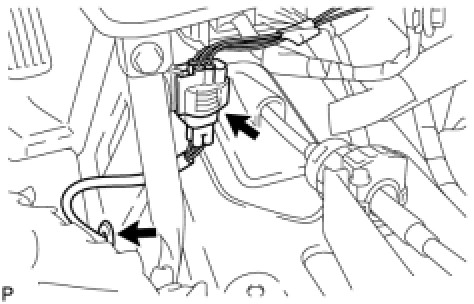

(a) Pull back the floor carpet and disconnect the oxygen sensor connector.
(b) Remove the grommet and put the oxygen sensor connector outside of the vehicle.
12. REMOVE FRONT EXHAUST PIPE ASSEMBLY Removal

13. REMOVE FRONT NO. 1 FLOOR HEAT INSULATOR

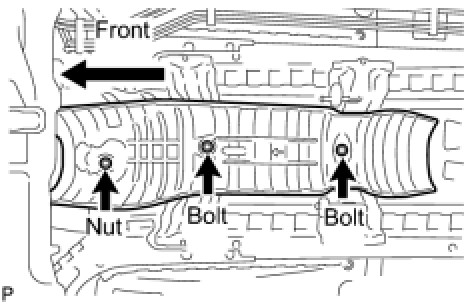

(a) Remove the 2 bolts and the nut and remove floor heat insulator.
14. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Disconnect the control cable from the shift lever.

(b) Turn the nut and separate the control cable from the shift lever retainer.

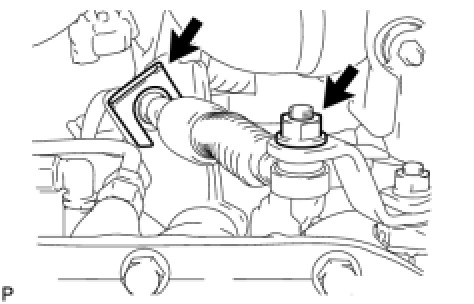

(d) Remove the nut and disconnect the control cable from the control shaft lever.

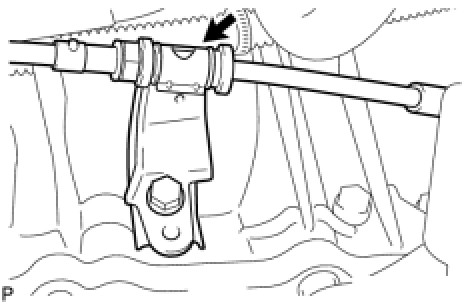

(e) Remove the clip and separate the control cable from the control cable bracket.

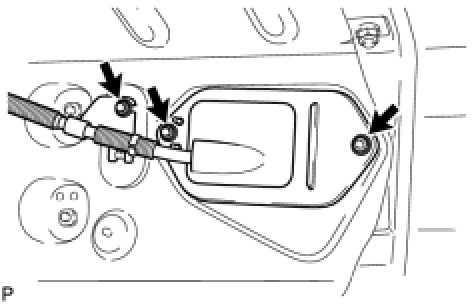

(f) Remove the 3 nuts and remove the control cable.
