U340E AUTOMATIC TRANSAXLE: FLOOR SHIFT ASSEMBLY: INSTALLATION

INSTALLATION





1. INSTALL FLOOR SHIFT ASSEMBLY
(a) Provisionally install the shift lever with the 4 bolts.
NOTE: Do not jam the wiring of the indicator light or shift lock.

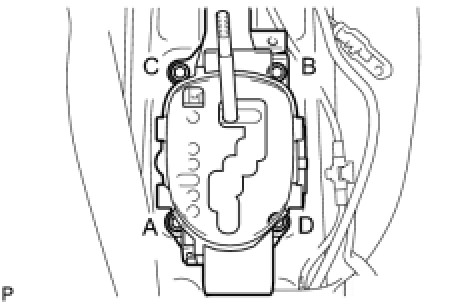

(b) Tighten the 4 bolts in order, from A to D.
Torque: 12 Nm (122 kgf-cm, 9 ft-lbf)
(c) Install the shift lock control computer connector and indicator light connector.
2. CONNECT TRANSMISSION CONTROL CABLE ASSEMBLY

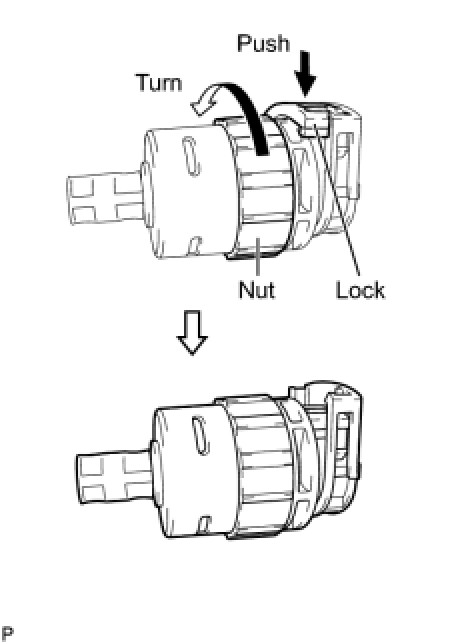

(a) Turn the nut of the control cable and push in the lock.





(b) Install the control cable onto the shift lever retainer.
CAUTION:

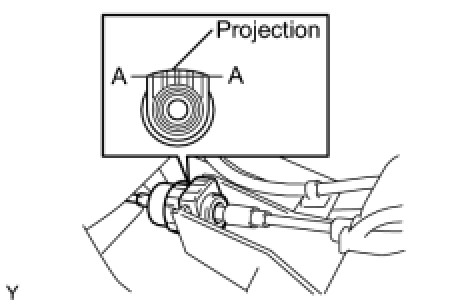

- Install the cable with the projection of the cable outer facing upward.
- After installing, check that the lock of the cable outer is protruding beyond portion A-A, as shown in the illustration.

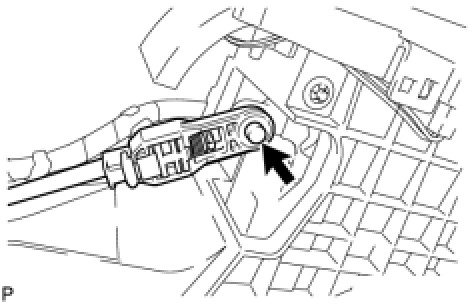

(c) Connect the control cable to the shift lever.
3. INSPECT SHIFT LEVER POSITION U340E Automatic Transaxle
4. ADJUST SHIFT LEVER POSITION Adjustments
5. INSTALL REAR CONSOLE BOX ASSEMBLY Installation
6. INSTALL CONSOLE BOX CARPET Installation
7. INSTALL REAR CONSOLE BOX COVER (for Hatchback) Installation
8. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Installation
9. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Installation
10. INSTALL CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) Installation
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
(a) Install the shift lever knob sub-assembly onto the shift lever.
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
