U340E AUTOMATIC TRANSAXLE: FLOOR SHIFT ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
(a) Remove the shift lever knob sub-assembly from the shift lever.
3. REMOVE CENTER LOWER INSTRUMENT PANEL FINISH PANEL (for Sedan) Removal
4. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Removal
5. REMOVE REAR CONSOLE BOX COVER (for Hatchback) Removal
6. REMOVE REAR UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Removal
7. REMOVE CONSOLE BOX CARPET Removal
8. REMOVE REAR CONSOLE BOX ASSEMBLY Removal
9. SEPARATE TRANSMISSION CONTROL CABLE ASSEMBLY

(a) Disconnect the control cable from the shift lever.

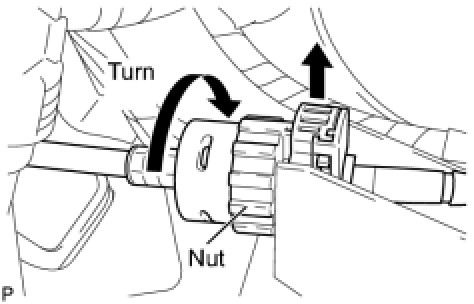

(b) Turn the nut and separate the control cable from the shift lever retainer.
10. REMOVE FLOOR SHIFT ASSEMBLY

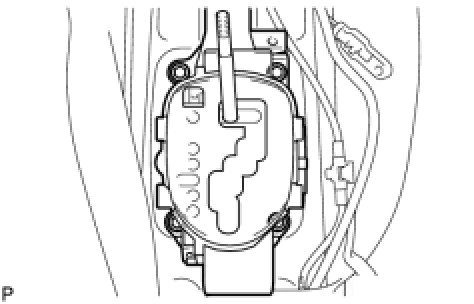

(a) Separate the shift lock control computer connector and indicator wire connector.
(b) Separate the 2 wire harness clamps from the shift lever.
