Canada -A/T - Shift Cable Rattles In Reverse

Bulletin
TSB2735R

Issue Date
April 26, 2007

Market
Canada

Title
RATTLE NOISE FROM AUTOMATIC TRANSMISSION CONTROL CABLE ASSEMBLY IN REVERSE

Component
AUTOMATIC TRANSMISSION

Models
'07 - '09 Yaris

TSB REVISION NOTICE

November 2, 2009: The information contained in this TSB supersedes all previous versions.
- Applicability has been updated to include 2008 - 2009 model year Yaris vehicles.
- The Applicable Warranty has been updated in the Warranty Information section.

Previous versions of this TSB should be discarded. Be sure to review the entire content of this service bulletin before proceeding.

INTRODUCTION:

Some 2007 - 2009 model year Yaris vehicles may exhibit a rattle noise from the engine compartment with engine speed above idle and the automatic transmission shift lever position in reverse. Follow the repair procedure below to address this concern.

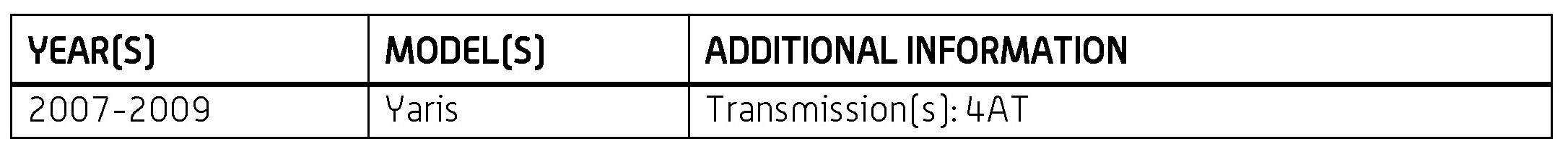

APPLICABILITY:

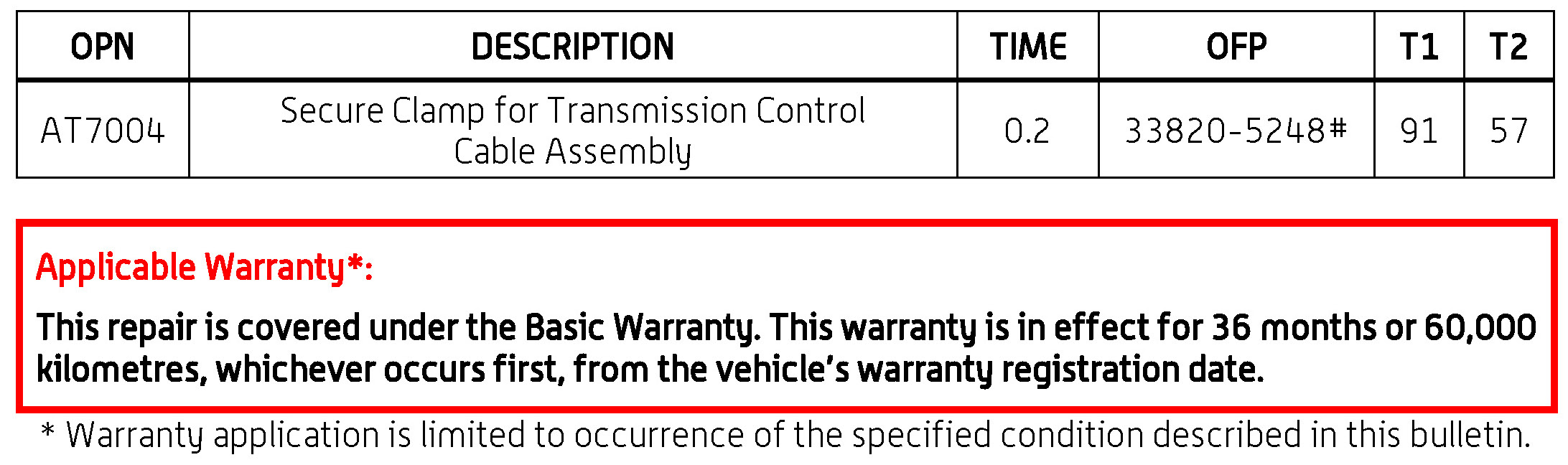

WARRANTY INFORMATION:

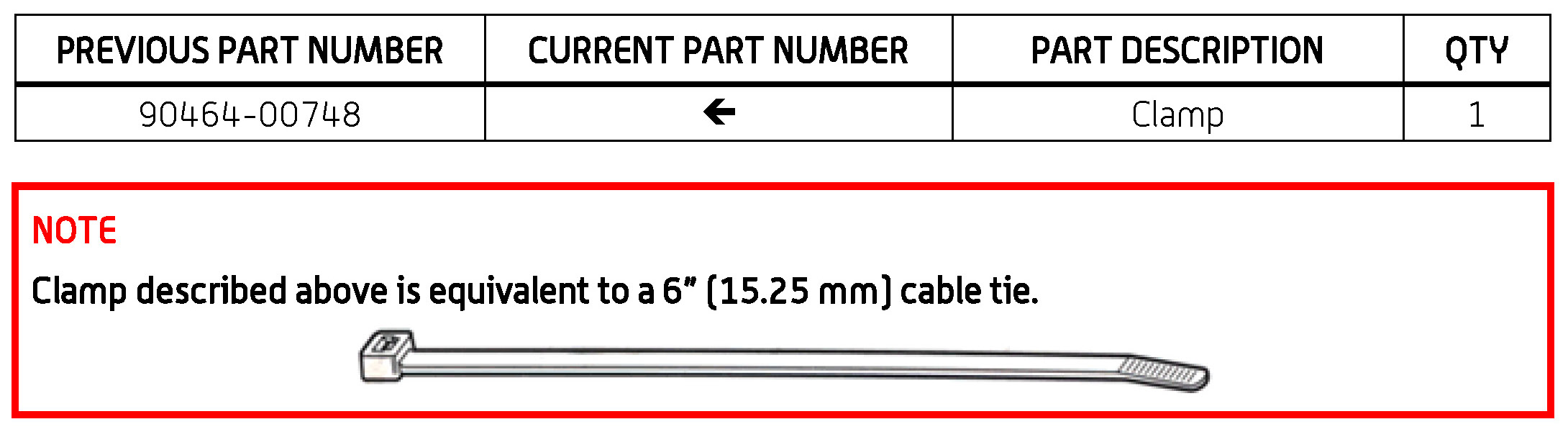

PARTS INFORMATION:

REPAIR PROCEDURE:

1. Raise the vehicle and locate the No. 2 transmission control cable support to the left of the center exhaust pipe flange.

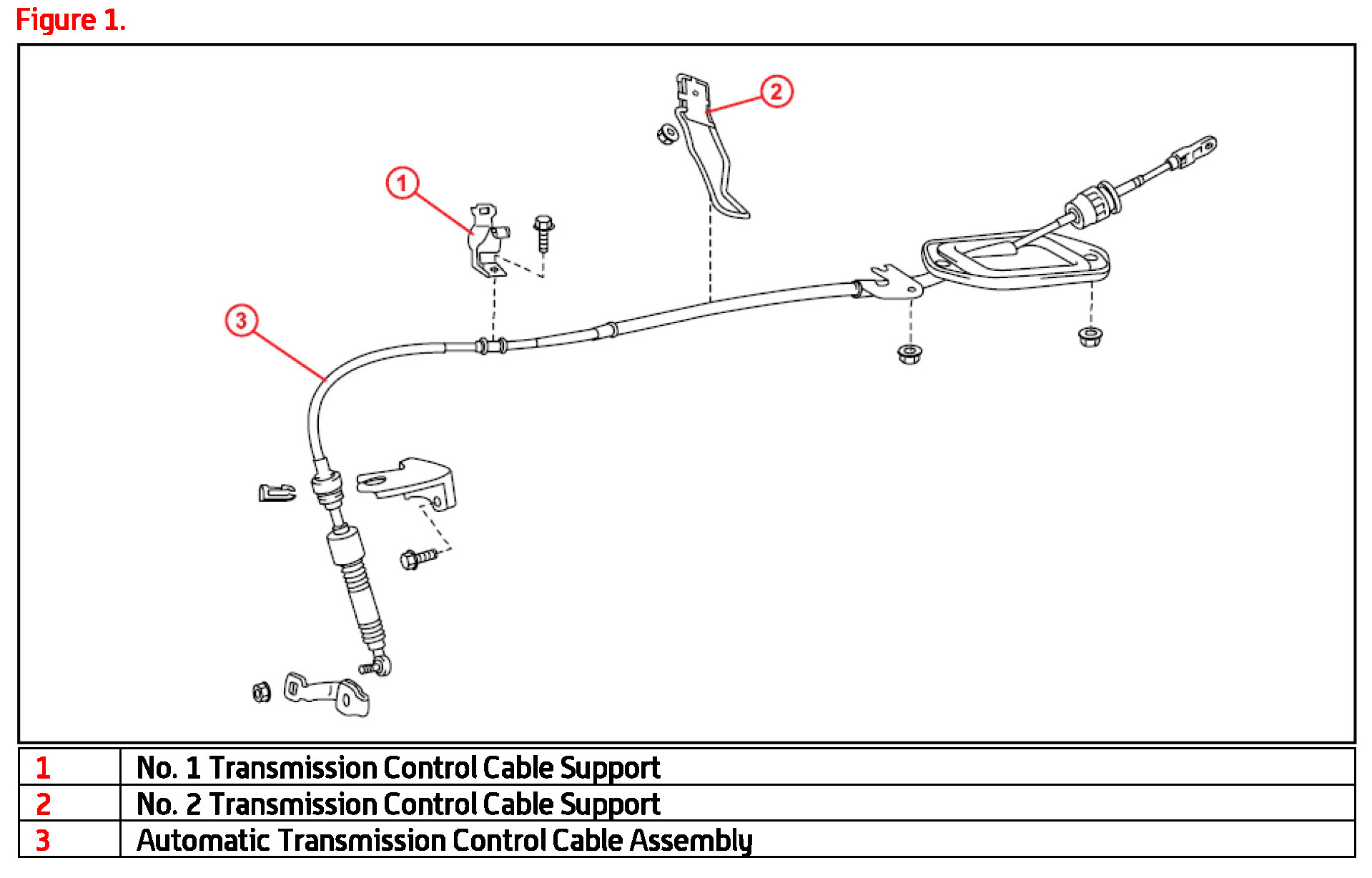

2. Using the plastic clamp, secure the automatic transmission control cable assembly to the No. 2 transmission control cable support. Refer to figure 1 for the location.







3. Confirm the repair.

NOTE:
Issue of this Technical Service Bulletin is to ensure that proper repair information is available. IT DOES NOT CONSTITUTE AN AUTHORIZATION FOR REPAIR. Normal provisions of the formal warranty policy, as applicable, will apply.
