Installation

U340E AUTOMATIC TRANSAXLE: TRANSMISSION REVOLUTION SENSOR: INSTALLATION

INSTALLATION

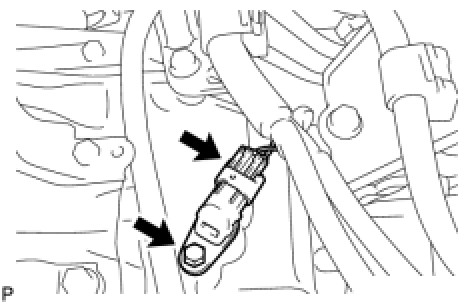

1. INSTALL TRANSMISSION REVOLUTION SENSOR





(a) Coat a new O-ring with Toyota Genuine ATF WS or equivalent, and install it onto the transmission revolution sensor.





(b) Install the transmission revolution sensor with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
(c) Connect the transmission revolution sensor connector.
2. INSTALL BATTERY CARRIER Installation
3. INSTALL BATTERY TRAY
4. INSTALL BATTERY Installation
