U340E AUTOMATIC TRANSAXLE: SPEED SENSOR: INSTALLATION

INSTALLATION





1. INSTALL SPEEDOMETER DRIVEN GEAR
(a) Coat a new O-ring with Toyota Genuine ATF WS or equivalent and install it onto the speedometer sensor.
(b) Install the driven gear into the speedometer sensor with the clip.





2. INSTALL SPEEDOMETER SENSOR

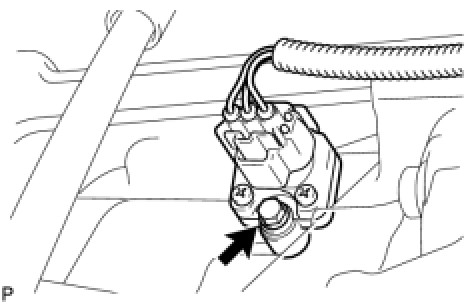

(a) Install the speedometer sensor with the bolt.
Torque: 7.0 Nm (71 kgf-cm, 62 in-lbf)
(b) Connect the speedometer sensor connector.
3. INSTALL BATTERY CARRIER Installation
4. INSTALL BATTERY TRAY
5. INSTALL BATTERY Installation
6. INSTALL OUTER COWL TOP PANEL
Hatchback: Installation
Sedan: Installation
7. INSTALL COWL TO REGISTER DUCT SUB-ASSEMBLY (for Hatchback) Installation
8. INSTALL FRONT AIR SHUTTER SEAL (for Sedan) Installation
9. INSTALL FRONT WIPER MOTOR AND LINK
Hatchback: Installation
Sedan: Installation
10. INSTALL COWL TOP VENTILATOR LOUVER LH (for Hatchback) Installation
11. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Hatchback: Installation
Sedan: Installation
12. INSTALL HOOD TO COWL TOP SEAL (for Hatchback) Installation
13. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY LH (for Sedan) Installation
14. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY RH (for Sedan) Installation
15. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
Hatchback: Installation
Sedan: Installation
16. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
Hatchback: Installation
Sedan: Installation
17. INSTALL FRONT WIPER ARM HEAD CAP
Hatchback: Installation
Sedan: Installation
