CLUTCH: CLUTCH PEDAL: REMOVAL

REMOVAL

1. REMOVE BRAKE BOOSTER ASSEMBLY
Removal
2. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER (for Hatchback)
Removal
3. REMOVE INSTRUMENT PANEL SUB-ASSEMBLY UPPER (for Sedan)
Removal
4. REMOVE CLUTCH RESERVOIR TUBE Removal
5. DISCONNECT CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE Removal
6. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.1 Removal
7. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY Removal
8. REMOVE CLUTCH PEDAL SUPPORT SUB-ASSEMBLY
(a) Disconnect the wire harness clamp.
(b) Disconnect the clutch start switch connector.





(c) Remove the bolt and clutch pedal support.





9. REMOVE CLUTCH START SWITCH ASSEMBLY
(a) Remove the nut and clutch start switch.





10. REMOVE CLUTCH PEDAL STOPPER BOLT
(a) Loosen the lock nut and remove the clutch pedal stopper bolt.
11. REMOVE CLUTCH PEDAL SPRING





12. REMOVE CLUTCH PEDAL SUB-ASSEMBLY
(a) Remove the bolt and the nut.
(b) Remove the clutch pedal from the clutch pedal support.

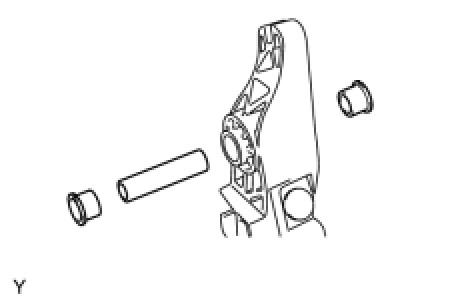

13. REMOVE CLUTCH PEDAL PAD





14. REMOVE CLUTCH PEDAL BUSH
(a) Remove the 2 bushes from the clutch pedal.
(b) Remove the collar from the clutch pedal.





15. REMOVE CLUTCH PEDAL NO.1 CUSHION
(a) Remove the clutch pedal No. 1 cushion from the clutch pedal.
