Disassembly

AXLE: FRONT AXLE HUB: DISASSEMBLY

DISASSEMBLY





1. REMOVE FRONT AXLE HUB HOLE SNAP RING

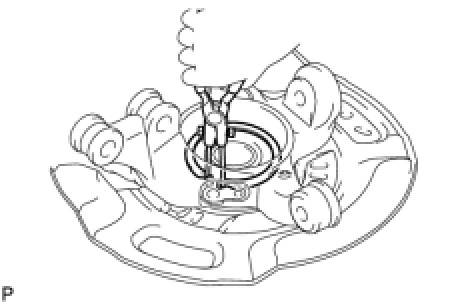

(a) Using snap ring pliers, remove the hole snap ring.
NOTE: When removing the hole snap ring, do not damage the magnetic rotor surface.

2. REMOVE FRONT AXLE HUB SUB-ASSEMBLY





(a) Fix the steering knuckle in a vise between aluminum plates.
NOTE: Do not overtighten the vise.

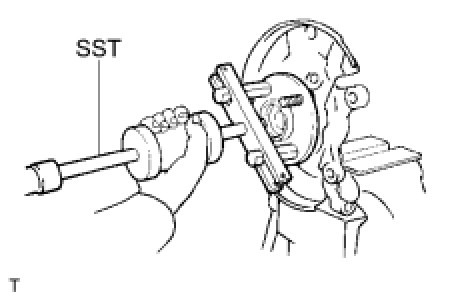

(b) Using SST, remove the axle hub.
SST: 09520-00031

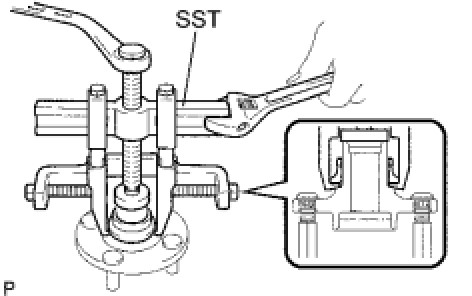

(c) Using SST, remove the hub bearing inner race from the axle hub.
SST: 09950-40011
09951-04020
09952-04010
09953-04020
09954-04010
09955-04011
09957-04010
09958-04011
SST: 09950-60010
09951-00370





3. REMOVE FRONT DISC BRAKE DUST COVER

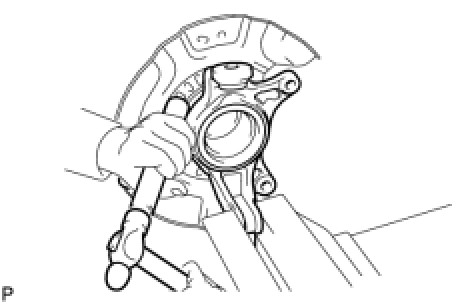

(a) Remove the dust cover by tapping the back side with a brass bar and hammer.





4. REMOVE FRONT AXLE HUB BEARING
(a) Install the removed hub bearing inner race onto the outer side of the hub bearing.

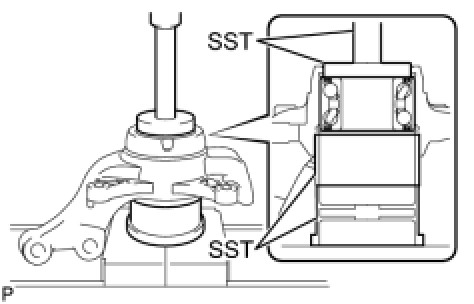

(b) Using SST and a press, remove the hub bearing from the steering knuckle.
SST: 09223-15020
SST: 09387-00041
09387-02010
SST: 09950-60010
09951-00630
SST: 09950-70010
09951-07100
