C50 MANUAL TRANSAXLE: DIFFERENTIAL OIL SEAL: INSTALLATION

INSTALLATION

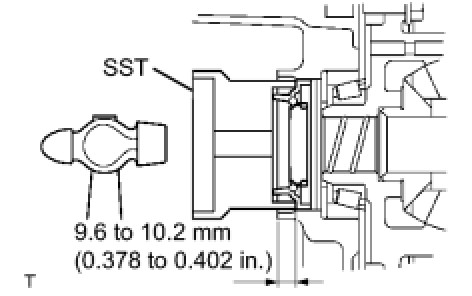

1. INSTALL TRANSMISSION CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.
(b) Using SST and a hammer, install the new oil seal.
SST: 09309-37010
Drive in depth:
9.6 to 10.2 mm (0.378 to 0.402 in.)
NOTE: Do not damage the oil seal lip.

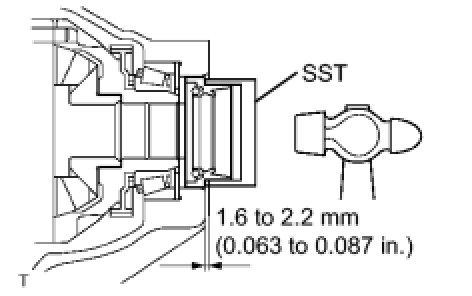

2. INSTALL TRANSAXLE CASE OIL SEAL
(a) Coat the lip of a new oil seal with MP grease.
(b) Using SST and a hammer, install the new oil seal.
SST: 09710-26011
09710-05061
Drive in depth:
1.6 to 2.2 mm (0.063 to 0.087 in.)
NOTE: Do not damage the oil seal lip.

3. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH Installation
4. INSTALL FRONT DRIVE SHAFT ASSEMBLY RH Installation
5. INSTALL FRONT AXLE ASSEMBLY LH Installation
6. INSTALL FRONT AXLE ASSEMBLY RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

7. INSTALL FRONT STABILIZER LINK ASSEMBLY LH Installation
8. INSTALL FRONT STABILIZER LINK ASSEMBLY RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

9. INSTALL TIE ROD END SUB-ASSEMBLY LH Installation
10. INSTALL TIE ROD END SUB-ASSEMBLY RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

11. INSTALL FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 LH Installation
12. INSTALL FRONT SUSPENSION ARM SUB-ASSEMBLY LOWER NO.1 RH
HINT: The installation procedure for the RH side is the same as that for the LH side.

13. INSTALL SPEED SENSOR FRONT LH (w/ ABS) Installation
14. INSTALL SPEED SENSOR FRONT RH (w/ ABS)
HINT: The installation procedure for the RH side is the same as that for the LH side.

15. INSTALL FRONT AXLE SHAFT LH NUT Installation
16. INSTALL FRONT AXLE SHAFT RH NUT
HINT: The installation procedure for the RH side is the same as that for the LH side.

17. INSTALL FRONT WHEELS
18. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
19. ADD TRANSAXLE OIL
20. INSPECT AND ADJUST TRANSAXLE OIL Testing and Inspection
21. INSPECT ABS SPEED SENSOR SIGNAL (w/ ABS)
Test Mode Procedure
22. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT
Service and Repair
23. CHECK FOR TRANSAXLE OIL LEAKAGE
