C50 MANUAL TRANSAXLE: TRANSMISSION CONTROL CABLE: INSTALLATION

INSTALLATION

1. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY





(a) Install the control cable with the 3 nuts.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)

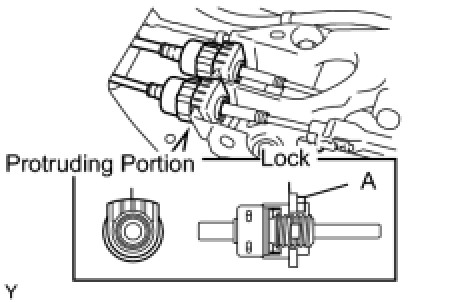

(b) Install the control shift cable onto the shift lever retainer.
NOTICE:
- Install the cable with the protruding portion of the cable outer facing upward.
- After installing, check that the lock of the cable outer is protruding beyond portion A, as shown in the illustration.

(c) Connect the control shift cable to the shift lever.
(d) Install the control shift cable onto the control cable bracket with a new clip.
(e) Connect the control shift cable to the transaxle through the washer.

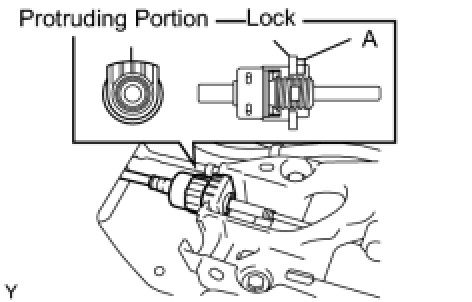

(f) Install the control select cable onto the shift lever retainer.
NOTICE:
- Install the cable with the protruding portion of the cable outer facing upward.
- After installing, check that the lock of the cable outer is protruding beyond portion A, as shown in the illustration.

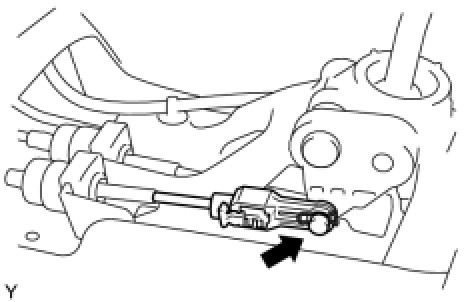

(g) Connect the control select cable to the shift lever with the clip.
NOTICE:
- Connect the control select cable so that the adjusting mechanism lock of the control select cable is installed on the left side of the vehicle.
- Insert the clip in the direction shown in the illustration.

(h) Install the control select cable onto the control cable bracket with a new clip.
(i) Connect the control select cable to the transaxle through the washer.





(j) Adjust the length of the control select cable.

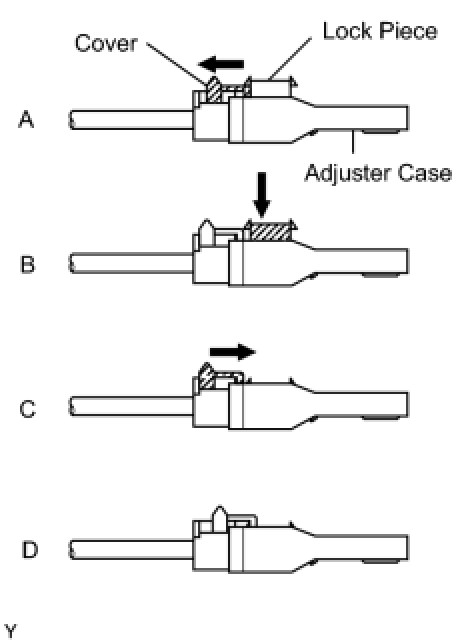

(1) Slide the adjuster case cover in the direction shown in the illustration (Illustration A).
(2) Gently pull the cable rod toward the rear of the vehicle by hand to pull the cable taut.
(3) Press the lock piece into the adjuster case and lock it (Illustration B).
(4) Slide the cover in the direction shown in the illustration (Illustration C).
NOTE: Slide the cover past the protrusion portion of the lock piece (Illustration D).

2. INSTALL FRONT FLOOR HEAT INSULATOR NO.1
(a) Install floor heat insulator No. 1 with the 2 bolts and nut.
Torque: 5.5 Nm (56 kgf-cm, 49 in-lbf)
3. INSTALL EXHAUST PIPE ASSEMBLY FRONT Installation
4. CONNECT OXYGEN SENSOR CONNECTOR
5. INSTALL CONSOLE BOX ASSEMBLY REAR (for Hatchback) Installation
6. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Hatchback) Installation
7. INSTALL REAR CONSOLE BOX ASSEMBLY (for Sedan) Installation
8. INSTALL CONSOLE BOX CARPET (for Sedan) Installation
9. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY (for Sedan) Installation
10. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (for Sedan) Installation
11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Sedan) Installation
12. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER CENTER (for Sedan) Installation
13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
