Heated Glass Element: Description and Operation
WINDSHIELD
/ WINDOWGLASS: WINDOW DEFOGGER SYSTEM: SYSTEM DIAGRAM

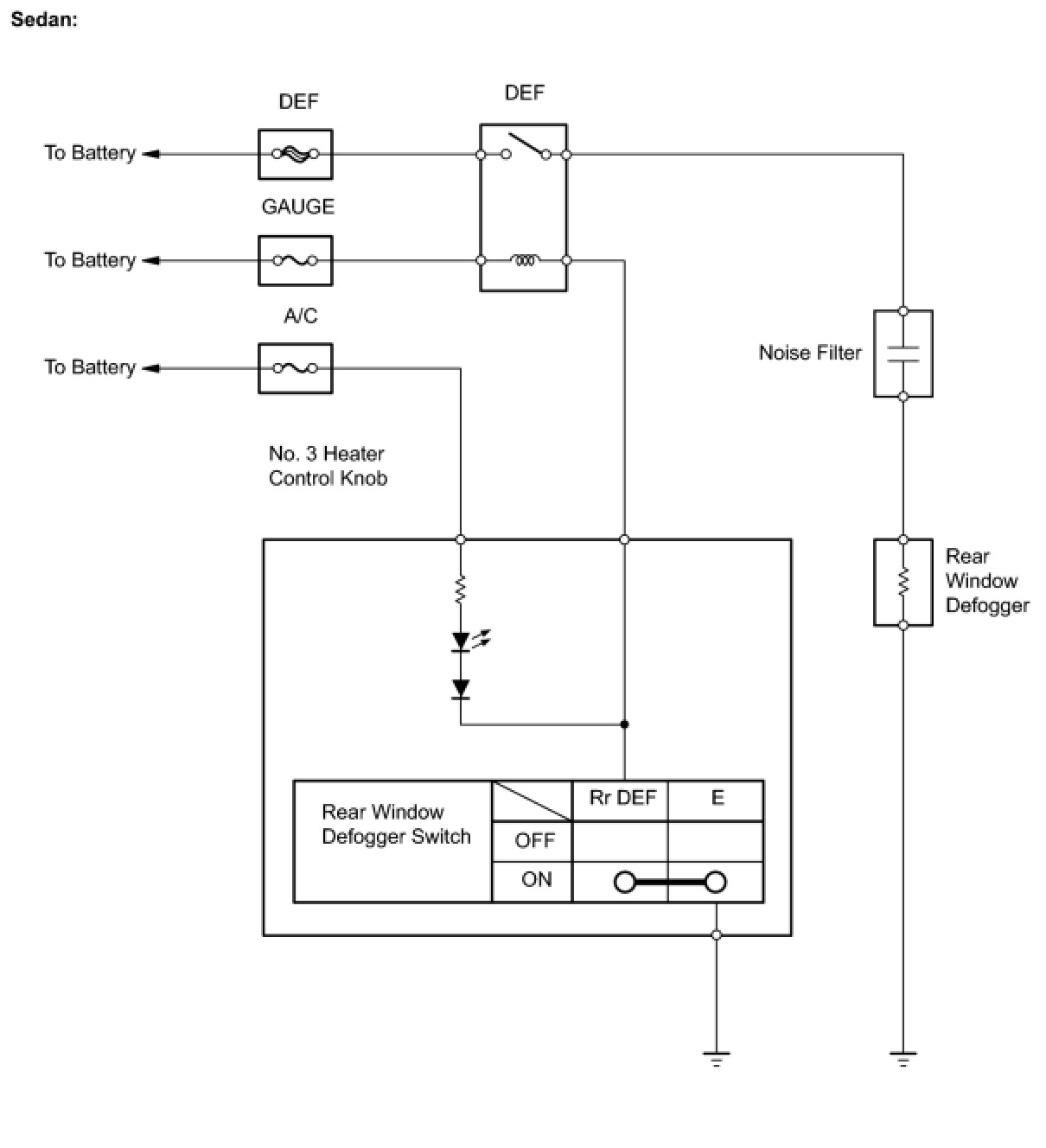

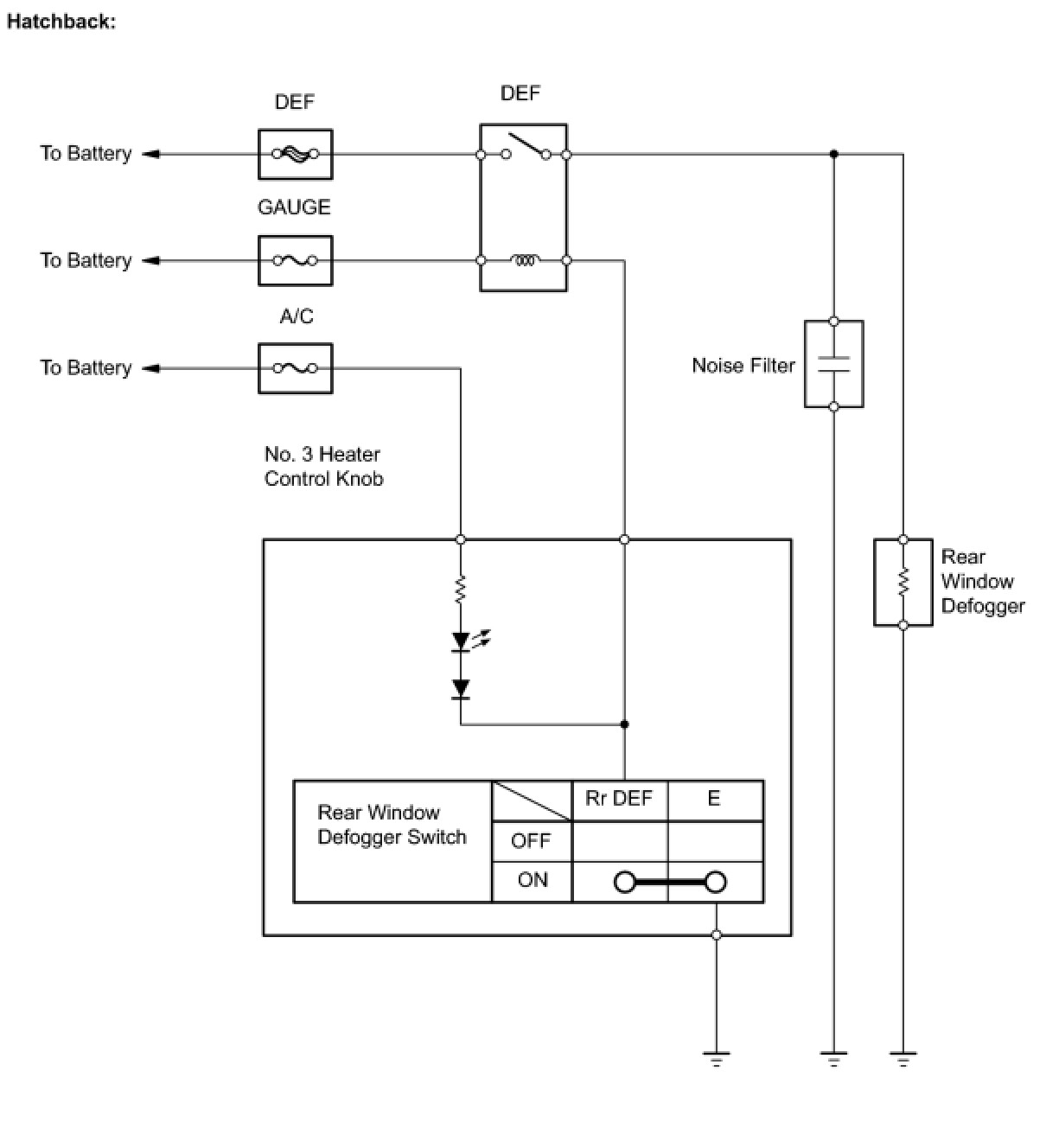

SYSTEM DIAGRAM
