Installation

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH (for Sedan): INSTALLATION

INSTALLATION

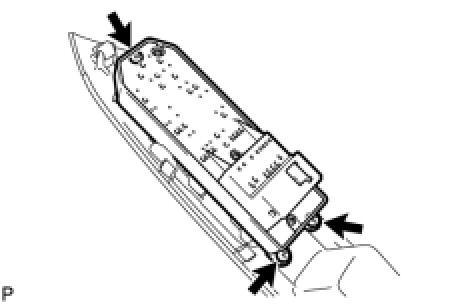

1. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
(a) Install the power window regulator master switch with the 3 screws.
2. INSTALL FRONT ARMREST BASE UPPER PANEL Reassembly
3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
