Removal

WINDSHIELD / WINDOWGLASS: REAR POWER WINDOW SWITCH (for Hatchback): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly





2. REMOVE POWER WINDOW REGULATOR SWITCH ASSEMBLY REAR

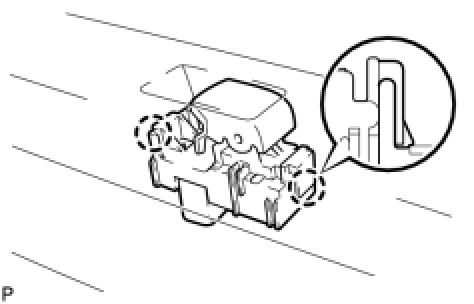

(a) Disengage the 2 claws and remove the power window regulator switch.
