Front Passenger Side Power Window Switch (for Sedan)

WINDSHIELD / WINDOWGLASS: FRONT PASSENGER SIDE POWER WINDOW SWITCH (for Sedan): INSPECTION

INSPECTION

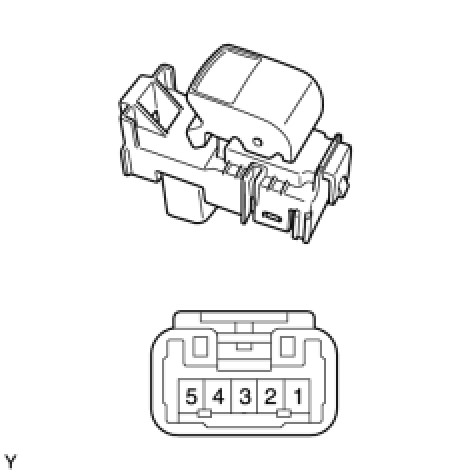

1. INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY





(a) Check the resistance.
(1) Using an ohmmeter, measure the resistance and check the results in accordance with the value(s) in the table below.

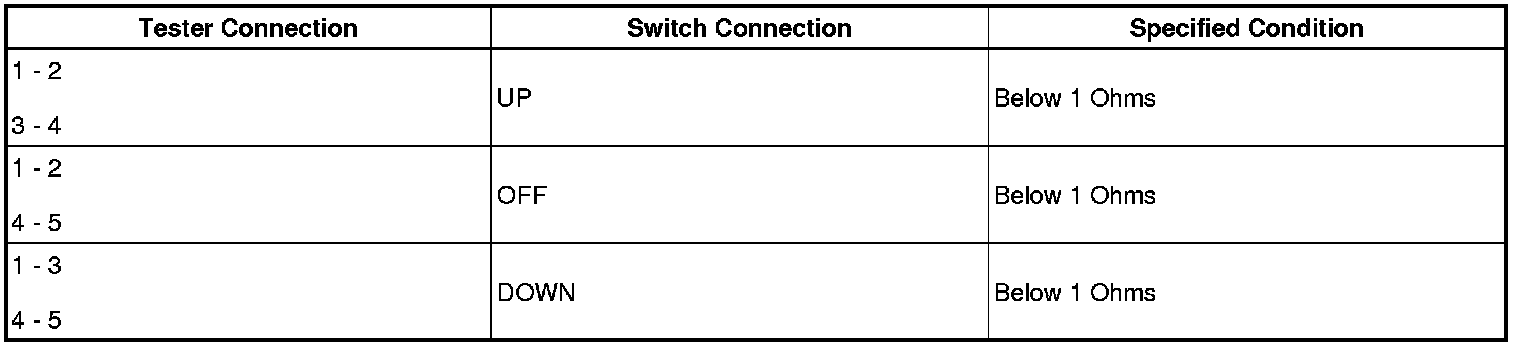

Standard Resistance:






If the result is not as specified, replace the power window regulator switch.
