Power Window Master Switch (for Hatchback)

WINDSHIELD / WINDOWGLASS: POWER WINDOW MASTER SWITCH (for Hatchback): INSPECTION

INSPECTION

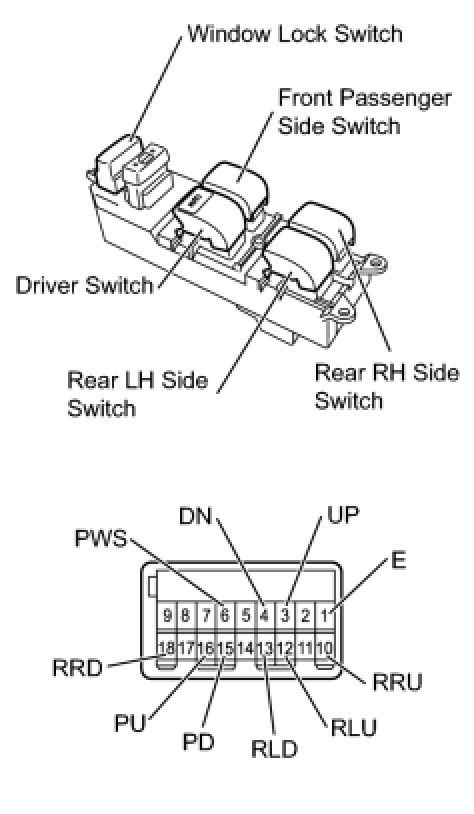

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY





(a) w/ Rear power window:
Check the resistance.
(1) Using an ohmmeter, measure the resistance and check the result in accordance with the value(s) in the tables below.
Standard Resistance:

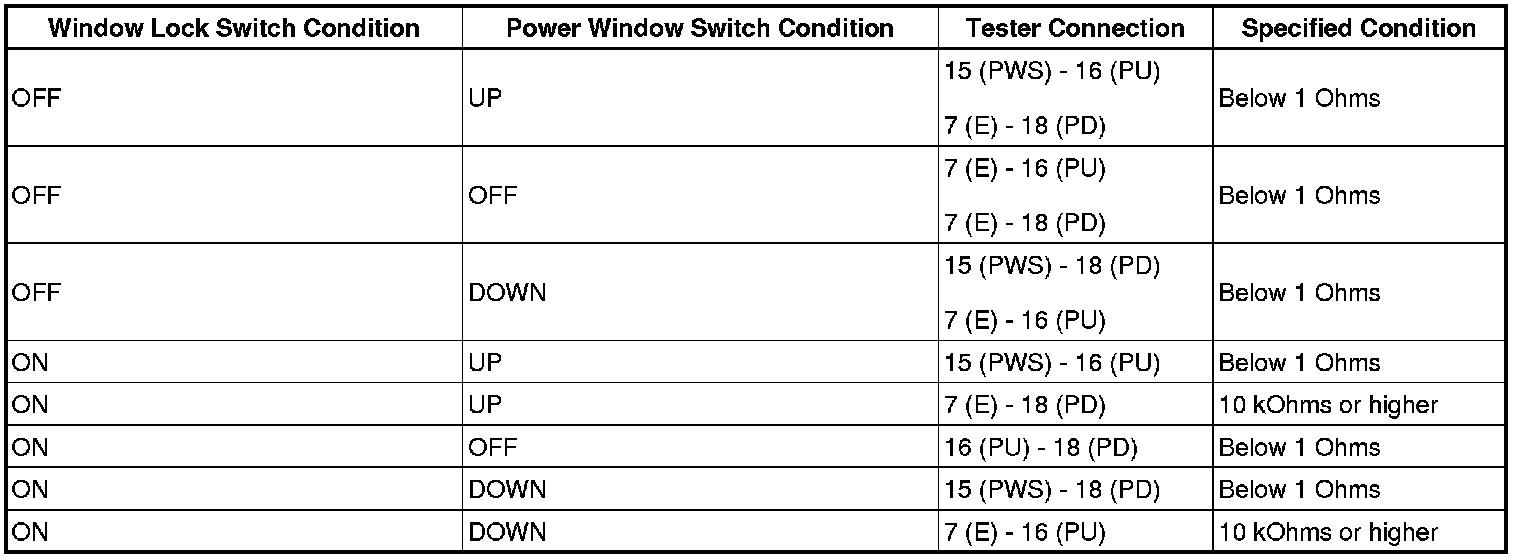

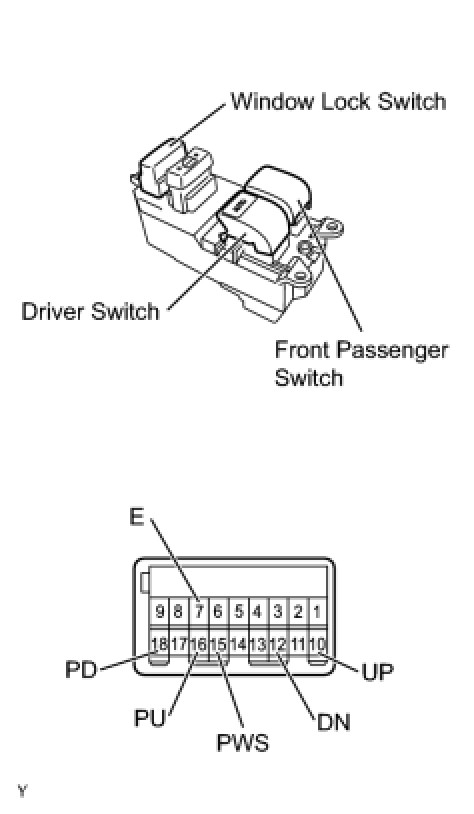

Driver switch






If the result is not as specified, replace the power window regulator master switch.
Standard Resistance:
Passenger side switch






If the result is not as specified, replace the power window regulator master switch.
Standard Resistance:

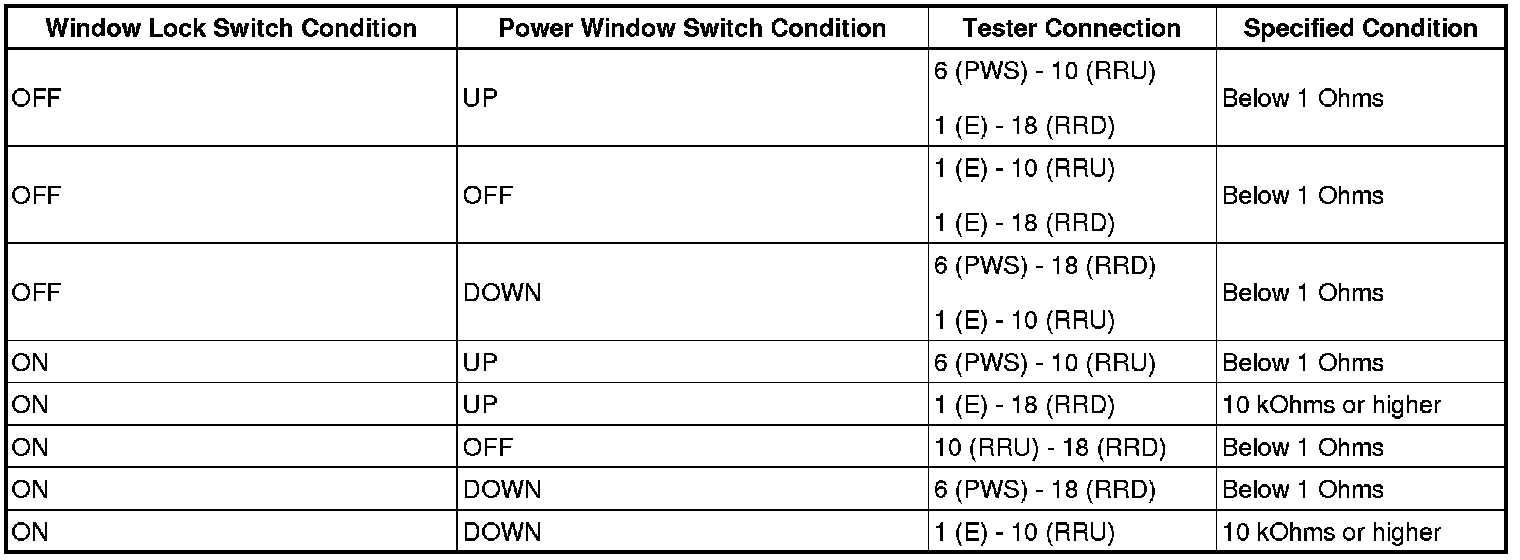

Rear LH side switch






If the result is not as specified, replace the power window regulator master switch.
Standard Resistance:

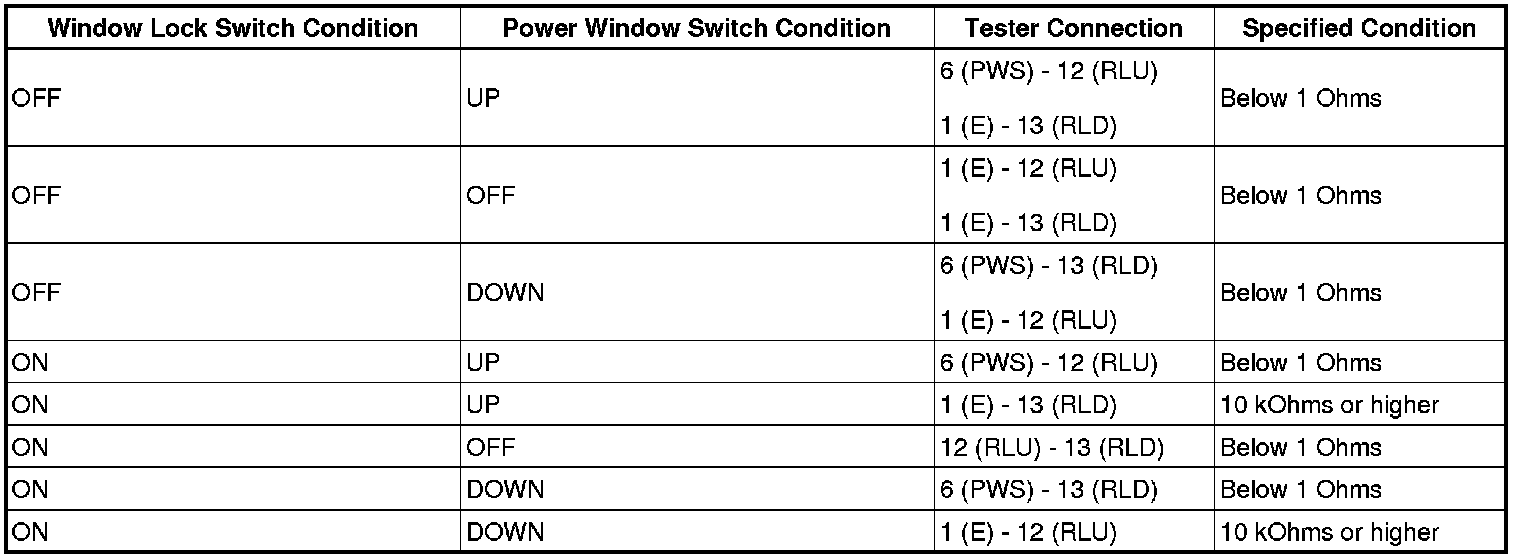

Rear RH side switch






If the result is not as specified, replace the power window regulator master switch.
(b) w/ Rear power window:
Check the illumination operation.

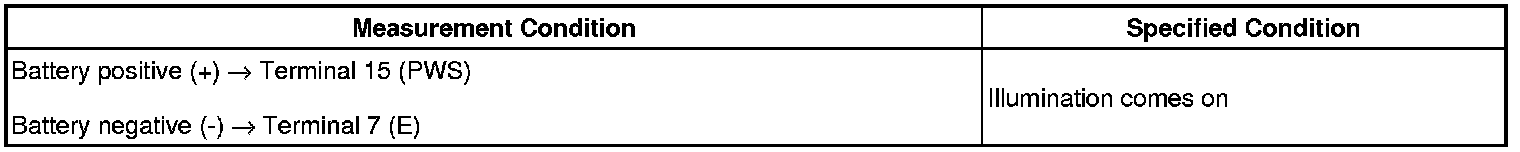

(1) Apply battery voltage to the power window regulator master switch and check that the illumination comes on.
Standard:






If the result is not as specified, replace the power window regulator master switch.





(c) w/o Rear power window:
Check the resistance.
(1) Using an ohmmeter, measure the resistance and check the result in accordance with the value(s) in the tables below.
Standard Resistance:

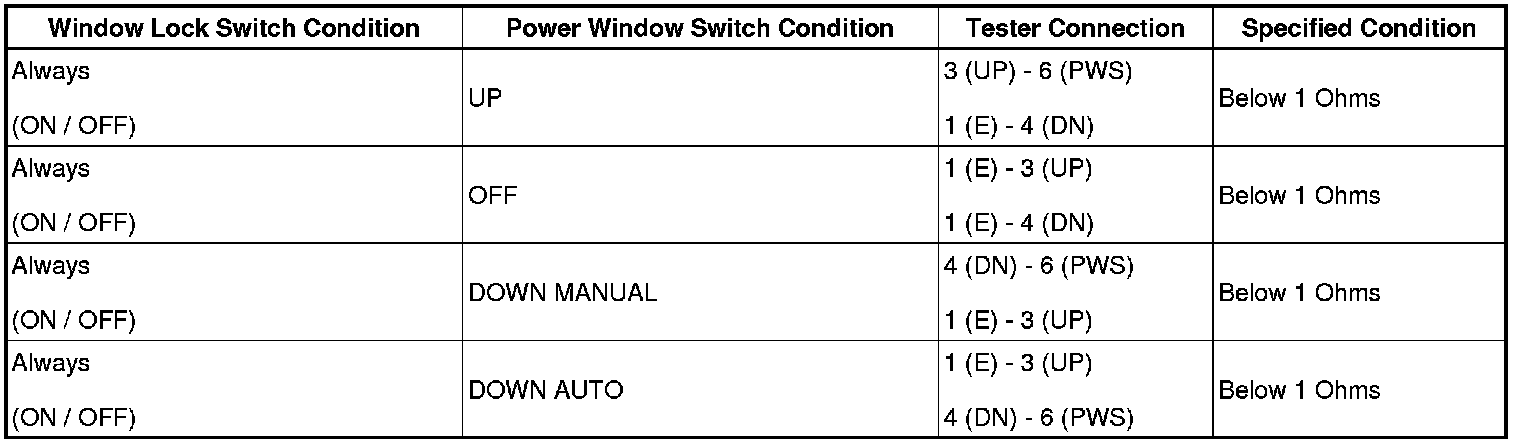

Driver switch






If the result is not as specified, replace the power window regulator master switch.
Standard Resistance:

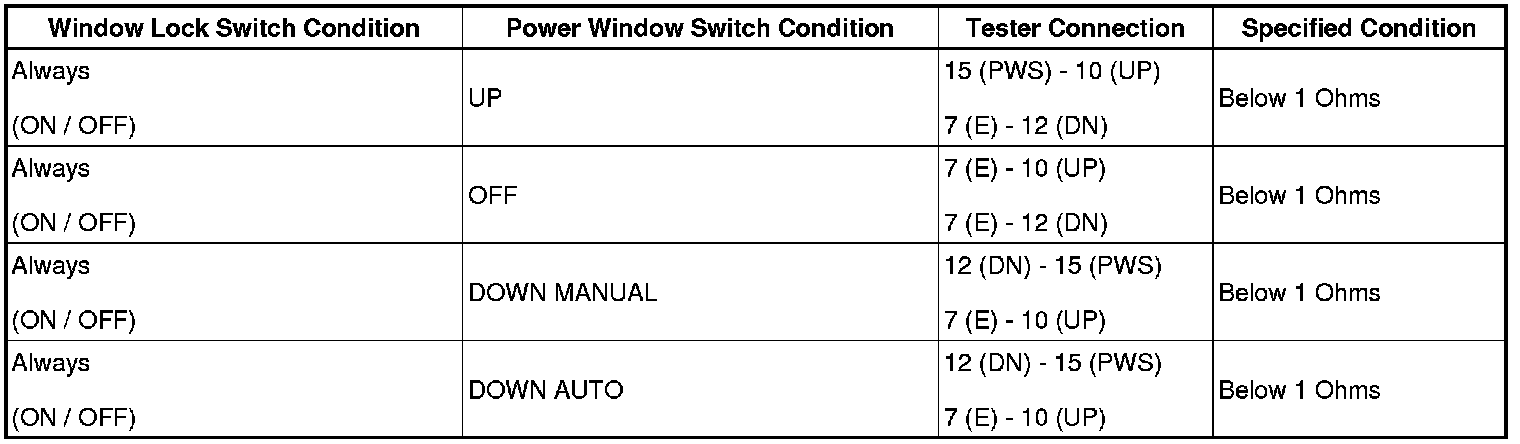

Passenger side switch






If the result is not as specified, replace the power window regulator master switch.
(d) w/o Rear power window:
Check the illumination operation.

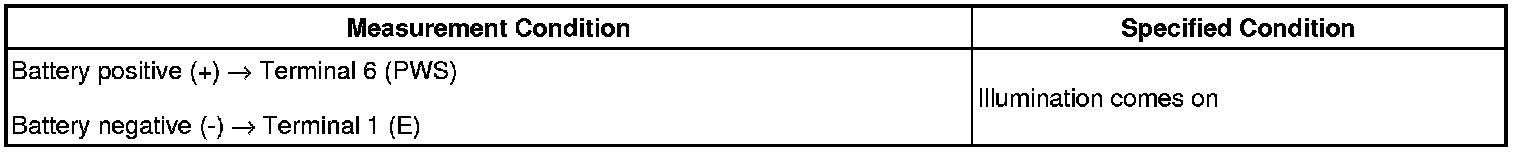

(1) Apply battery voltage to the power window regulator master switch and check that the illumination comes on.
Standard:






If the result is not as specified, replace the power window regulator master switch.
