Driver Side Power Window Does Not Operate With Power Window Master Switch

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Driver Side Power Window does not Operate with Power Window Master Switch

Driver Side Power Window does not Operate with Power Window Master Switch

DESCRIPTION

If the manual UP / DOWN and AUTO DOWN functions do not operate, a malfunction may exist in the power window regulator master switch, power window regulator motor or wire harness.

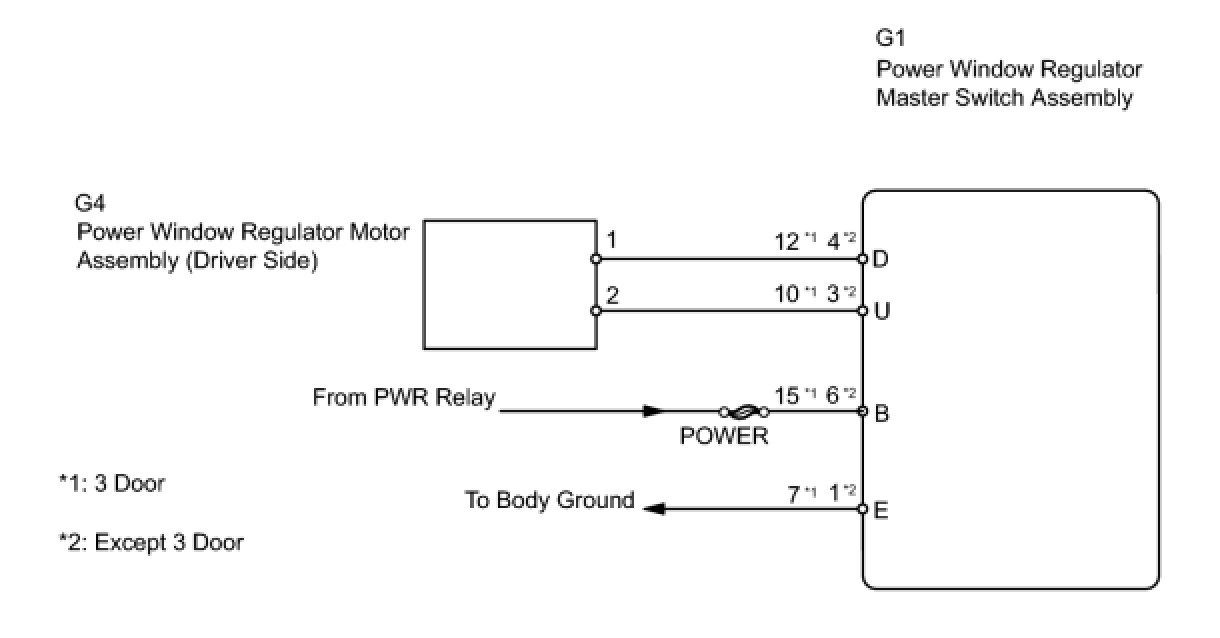

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY (DRIVER SWITCH)

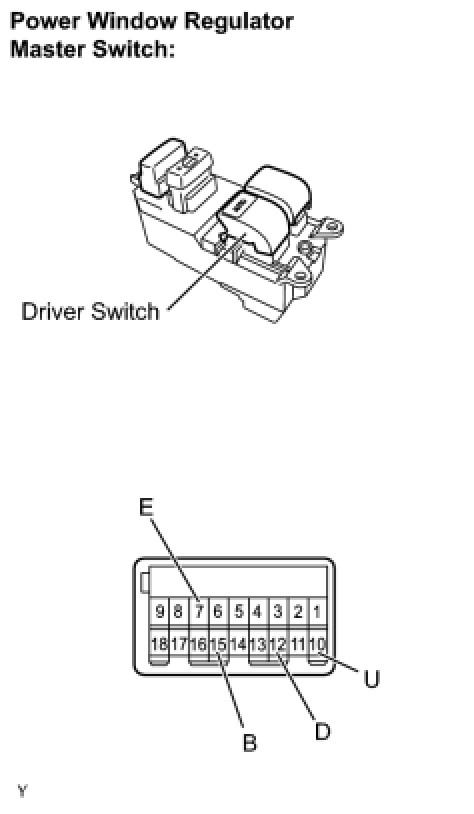

(a) 3 Door:
Inspect the driver switch.
(1) Remove the power window regulator master switch assembly.

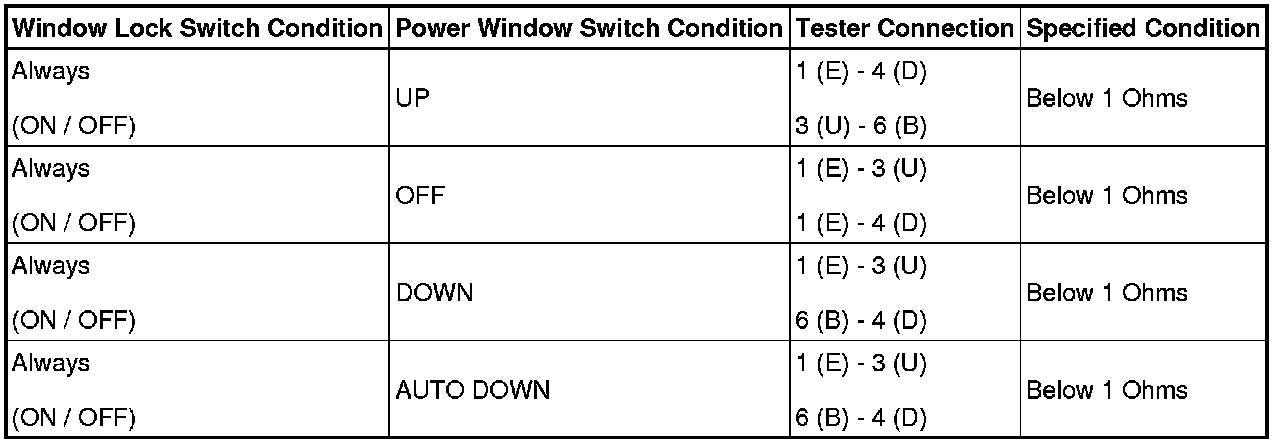

(2) Measure the resistance of the switch when the switch is operated.

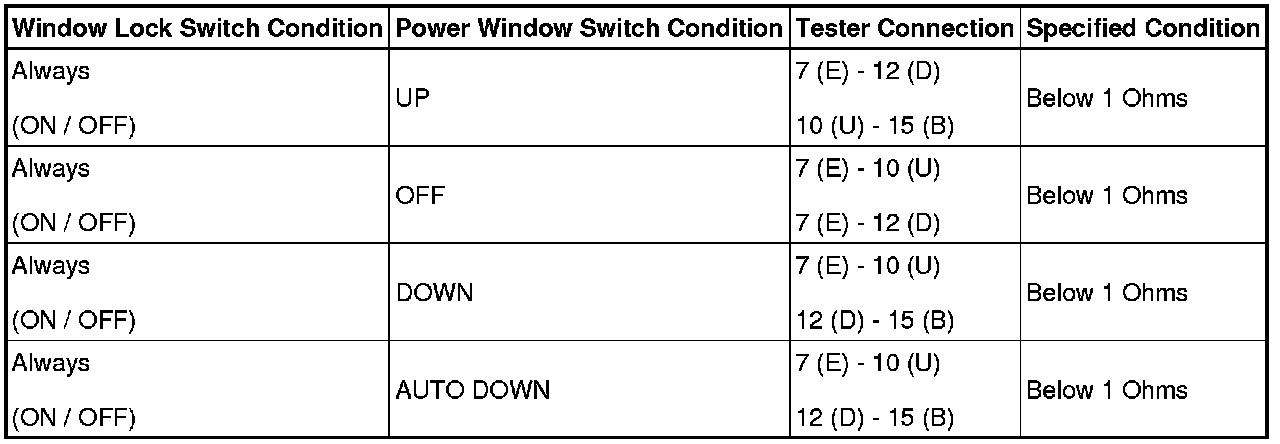

Standard resistance:






(3) Reinstall the power window regulator master switch assembly.

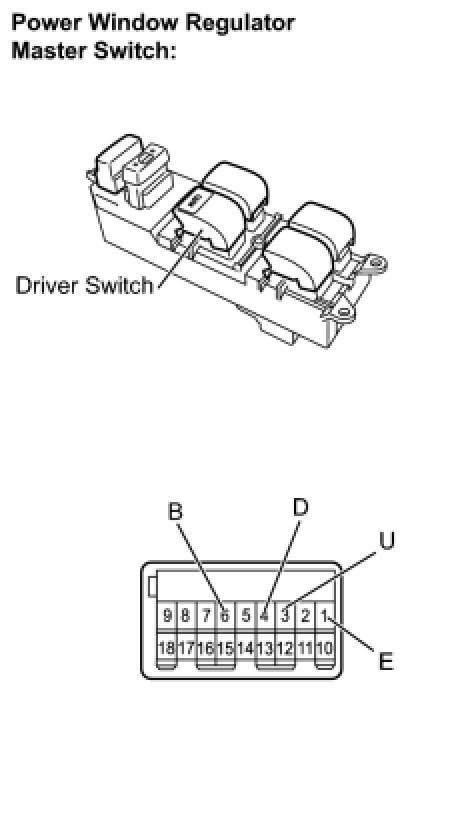

(b) Except 3 door:
Inspect the driver switch.
(1) Remove the power window regulator master switch assembly.
(2) Measure the resistance of the switch when the switch is operated.
Standard resistance:






(3) Reinstall the power window regulator master switch assembly.
NG -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
OK -- Continue to next step.
2. CHECK HARNESS AND CONNECTOR (MASTER SWITCH - MOTOR (DRIVER SIDE))
(a) Disconnect the G1 power window regulator master switch assembly connector.




(b) Disconnect the G4 power window regulator motor assembly connector.

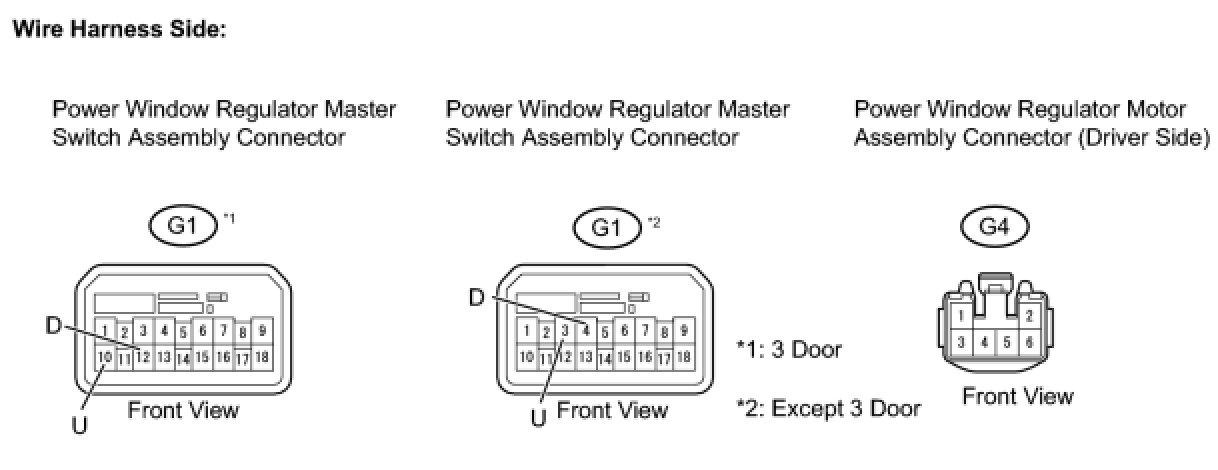

(c) Measure the resistance of the wire harness side connectors.

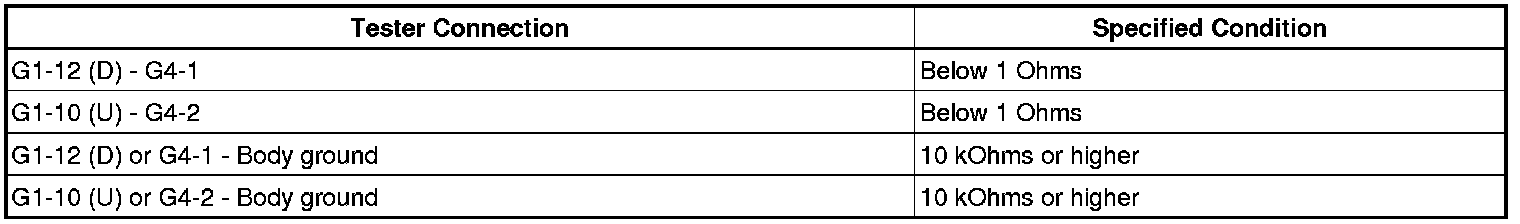

Standard resistance:
3 Door

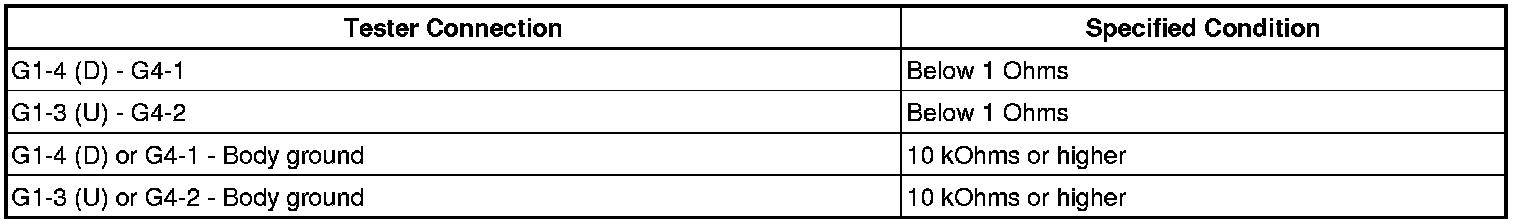

Except 3 door





(d) Reconnect the G1 power window regulator master switch assembly connector.
(e) Reconnect the G4 power window regulator motor assembly connector.
NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.
3. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER SIDE)




(a) Remove the power window regulator motor assembly.
(b) Apply battery voltage to connector terminals 1 and 2.
NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

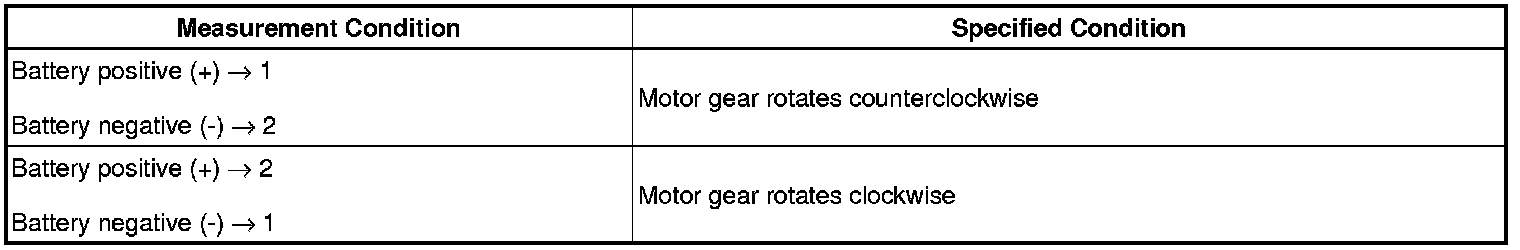

(c) Check that the motor gear rotates smoothly as follows.
OK:





(d) Reinstall the power window regulator motor assembly
NG -- REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (DRIVER SIDE)
OK -- GO TO POWER WINDOWS DO NOT OPERATE AT ALL
