Remote Up / Down Function Does Not Operate

WINDSHIELD / WINDOWGLASS: POWER WINDOW CONTROL SYSTEM: Remote Up / Down Function does not Operate

Remote Up / Down Function does not Operate

DESCRIPTION

3 Door:
With the ignition switch ON, the power window regulator master switch transmits remote switch signals to the regulator switch of the passenger door power window. Then, the regulator switch drives the passenger power window regulator motor.
Except 3 door:
With the ignition switch ON, the power window regulator master switch transmits remote switch signals to the regulator switches of the passenger door power window and rear door power windows. Then, each regulator switch drives its respective power window regulator motor.

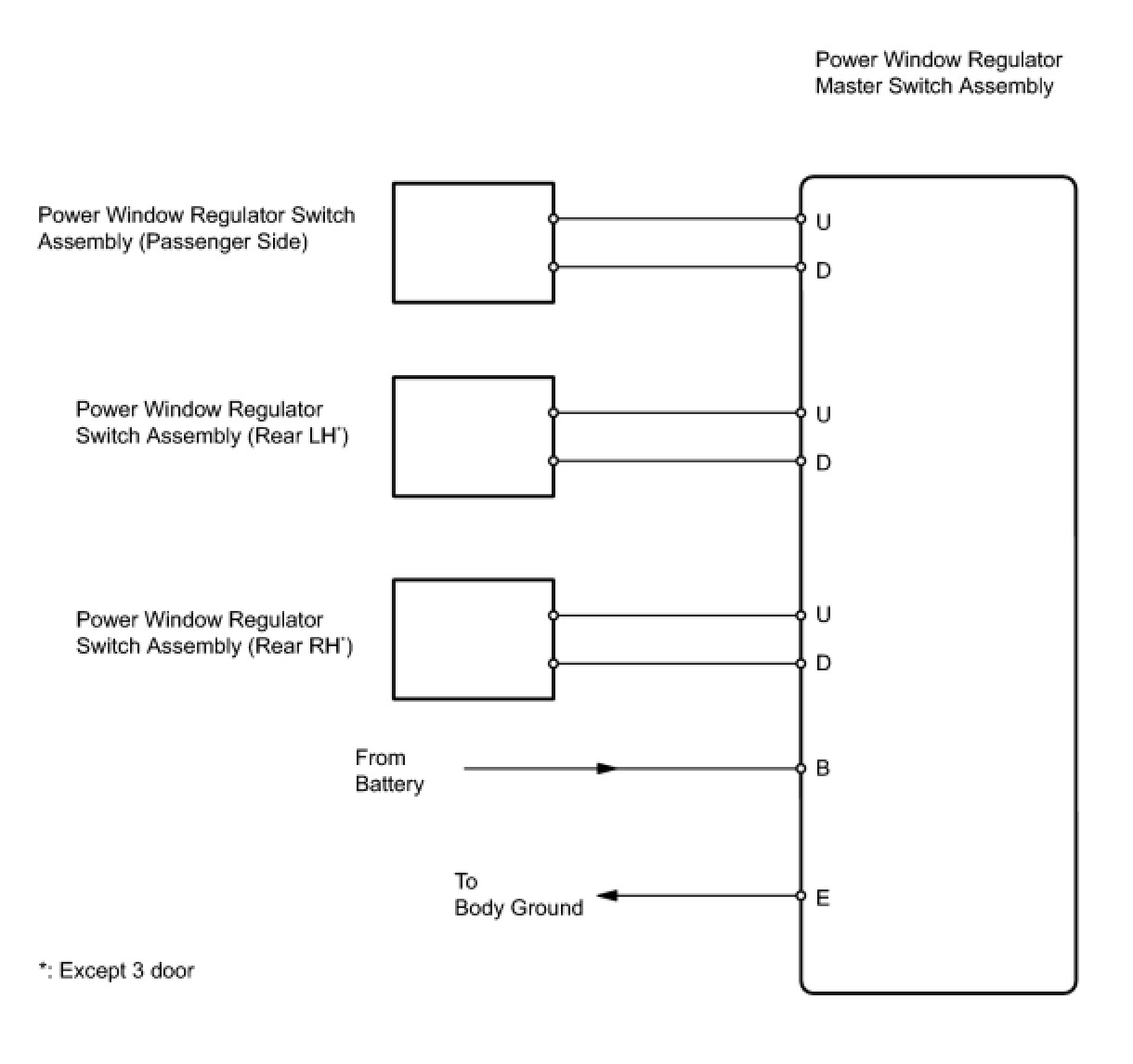

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHECK POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY




(a) Turn the window lock switch OFF and operate the switches on the master switch. Check that the remote UP / DOWN function operates normally.
OK:
Remote UP / DOWN function operates normally.
NG -- CHECK MANUAL UP / DOWN FUNCTION
OK -- END
2. CHECK MANUAL UP / DOWN FUNCTION
(a) 3 Door:
Check that the passenger door power window manual UP / DOWN function operates normally.
Except 3 door:
Check that the passenger door power window and rear door power window manual UP / DOWN function operates normally.
OK:
Manual UP / DOWN function operates normally.
NG -- OTHER PROBLEM
OK -- REPLACE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
