WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR (for Hatchback Rear Side): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY Disassembly
3. REMOVE REAR DOOR SERVICE HOLE COVER Disassembly
4. REMOVE REAR DOOR CHECK ASSEMBLY Disassembly
5. REMOVE REAR DOOR WEATHERSTRIP Disassembly
6. REMOVE REAR DOOR BELT MOULDING
7. REMOVE REAR DOOR GLASS RUN Disassembly
8. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY Disassembly
9. REMOVE REAR DOOR QUARTER WINDOW WEATHERSTRIP Disassembly
10. REMOVE REAR DOOR GLASS SUB-ASSEMBLY Disassembly
11. REMOVE REAR DOOR WINDOW REGULATOR SUB-ASSEMBLY Disassembly





12. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY REAR

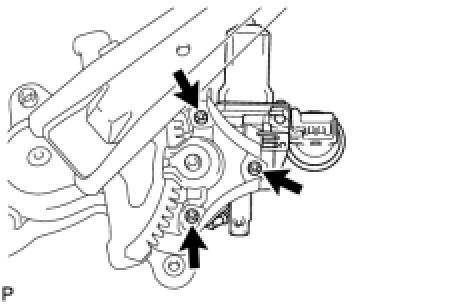

(a) Using "Torx" socket wrench T25, remove the 3 screws and the power window regulator motor.
