Removal

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR (for Sedan Front Side): REMOVAL

REMOVAL
HINT:
- Use the same procedure for both the RH and LH sides.
- The procedure described below is for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH Disassembly
3. REMOVE FRONT ARMREST BASE UPPER PANEL Disassembly
4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Disassembly
5. REMOVE OUTER REAR VIEW MIRROR Removal
6. REMOVE FRONT DOOR BELT MOULDING
7. REMOVE FRONT DOOR TRIM BRACKET Disassembly
8. REMOVE FRONT DOOR SERVICE HOLE COVER Disassembly
9. REMOVE FRONT DOOR GLASS SUB-ASSEMBLY Disassembly
10. REMOVE FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY Disassembly





11. REMOVE POWER WINDOW REGULATOR MOTOR ASSEMBLY FRONT

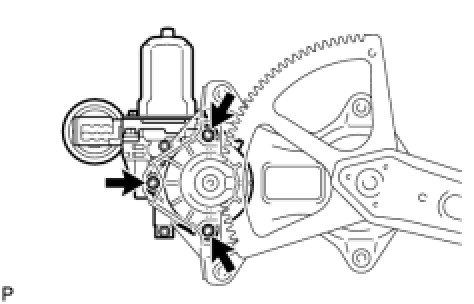

(a) Using "Torx" socket wrench T25, remove the 3 screws and power window regulator motor.
