Inspection

WINDSHIELD / WINDOWGLASS: POWER WINDOW REGULATOR MOTOR (for Sedan Front Side): INSPECTION

INSPECTION

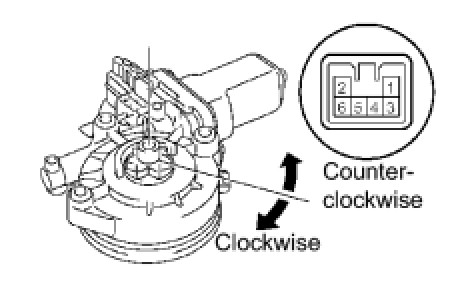

1. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH FRONT





(a) Check the operation of the regulator motor.
(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.

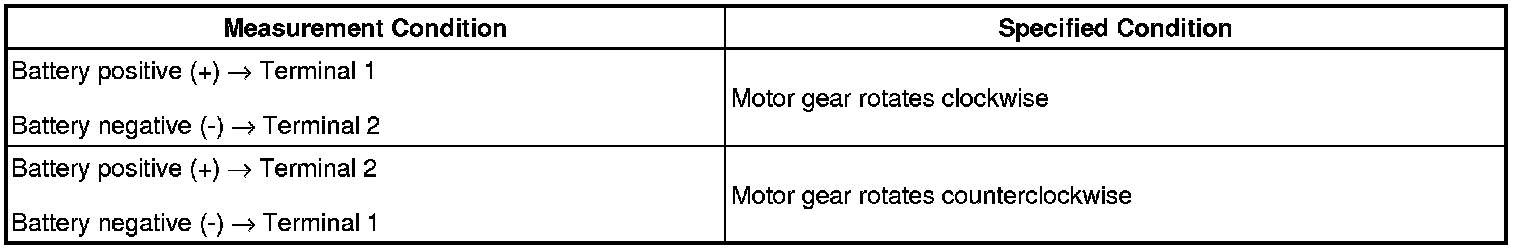

Standard:






If the result is not as specified, replace the power window regulator motor.
2. INSPECT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH FRONT





(a) Check the operation of the regulator motor.
(1) Apply battery voltage to the regulator motor and check the operation of the regulator motor.
Standard:






If the result is not as specified, replace the power window regulator motor.
