Wiper and Washer Systems: Specifications
SERVICE SPECIFICATIONS: WIPER AND WASHER: TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS

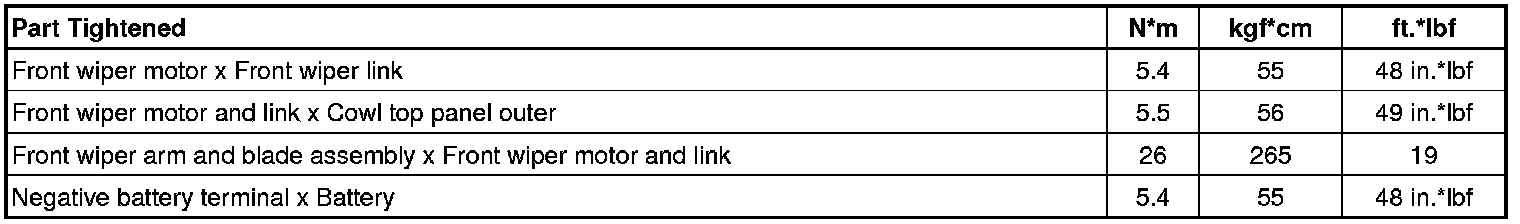

FRONT WIPER MOTOR (for Sedan):
FRONT WIPER MOTOR (for Hatchback):

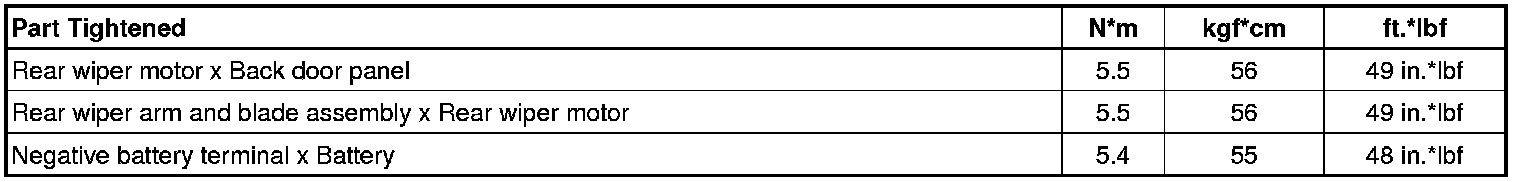

REAR WIPER MOTOR (for Hatchback):
WIPER SWITCH (for Sedan):
WIPER SWITCH (for Hatchback):
WASHER MOTOR (for Sedan):
WASHER MOTOR (for Hatchback):
WASHER LEVEL WARNING SWITCH (for Sedan):
