WIPER AND WASHER: WASHER MOTOR (for Hatchback): REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT BUMPER COVER Removal
3. REMOVE RH HEADLIGHT ASSEMBLY Removal
4. DRAIN WASHER FLUID

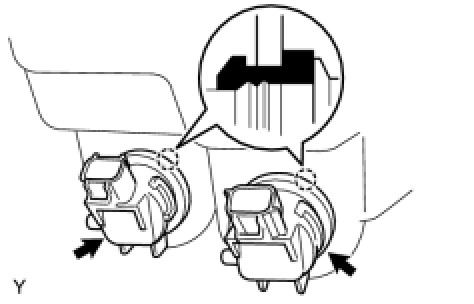

(a) Disconnect the 2 washer hoses from the windshield washer motor and pump, and drain the washer fluid.





5. REMOVE WINDSHIELD WASHER JAR ASSEMBLY
(a) w/ Washer Level Warning Switch
(1) Disconnect the 2 harness clamps.
(2) Disconnect the 3 connectors.
(3) Remove the 2 bolts.
(4) Remove the windshield washer jar.
(b) w/o Washer Level Warning Switch
(1) Disconnect the 2 harness clamps.
(2) Disconnect the 2 connectors.
(3) Remove the 2 bolts.
(4) Remove the windshield washer jar.





6. REMOVE WINDSHIELD WASHER MOTOR AND PUMP ASSEMBLY
(a) Pull the washer motor and pump out of the packing of the washer jar.
