Washer Nozzle (for Hatchback)

WIPER AND WASHER: WASHER NOZZLE (for Hatchback): ADJUSTMENT

ADJUSTMENT

1. REMOVE FRONT WIPER ARM HEAD CAP Removal
2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal
3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal
4. REMOVE HOOD TO COWL TOP SEAL Removal
5. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal
6. REMOVE COWL TOP VENTILATOR LOUVER LH Removal





7. REMOVE WASHER NOZZLE
(a) Disconnect the washer hose.

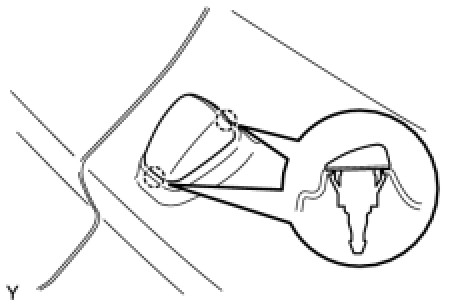

(b) Disengage the 2 claws and remove the front washer nozzle.
NOTE: Do not reuse the washer nozzle.





8. ADJUST WASHER NOZZLE
(a) Select a washer nozzle from the table so as to make the washer fluid hit within the specified area.

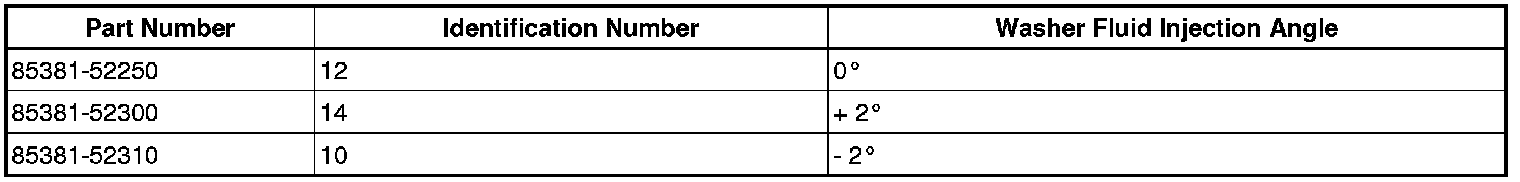

Available Washer Nozzle:






9. INSTALL COWL TOP VENTILATOR LOUVER LH Installation
10. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
11. INSTALL HOOD TO COWL TOP SEAL Installation
12. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
13. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
14. INSTALL FRONT WIPER ARM HEAD CAP Installation
