Washer Nozzle (for Sedan)

WIPER AND WASHER: WASHER NOZZLE (for Sedan): ADJUSTMENT

ADJUSTMENT

1. REMOVE FRONT WIPER ARM HEAD CAP Removal
2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH Removal
3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH Removal
4. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY LH Removal
5. REMOVE COWL SIDE VENTILATOR SUB-ASSEMBLY RH Removal
6. REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Removal





7. REMOVE WASHER NOZZLE
(a) Disconnect the washer hose.

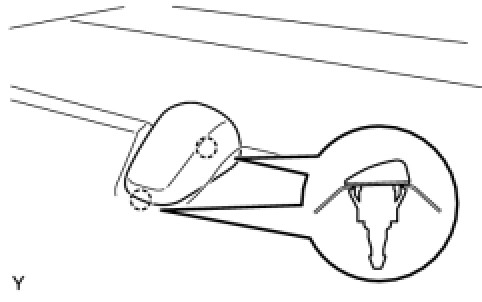

(b) Disengage the 2 claws and remove the front washer nozzle.
NOTE: Do not reuse the washer nozzle.





8. ADJUST WASHER NOZZLE

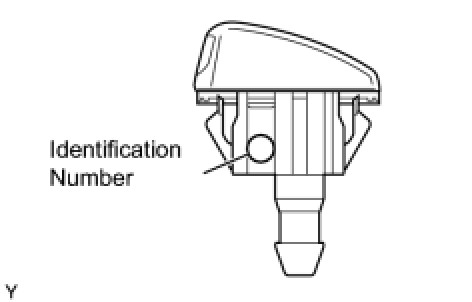

(a) Select a washer nozzle from the table so as to make the washer fluid hit within the specified area.

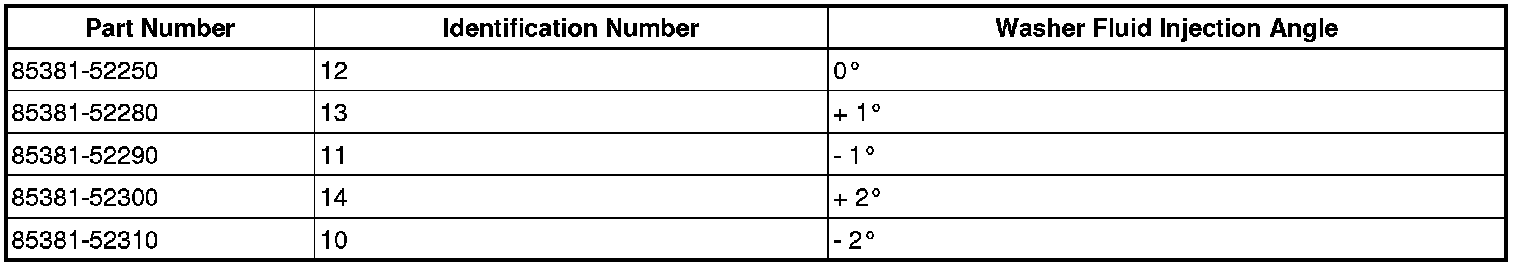

Available Washer Nozzle:






9. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY Installation
10. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY LH Installation
11. INSTALL COWL SIDE VENTILATOR SUB-ASSEMBLY RH Installation
12. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH Installation
13. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH Installation
14. INSTALL FRONT WIPER ARM HEAD CAP Installation
