Washer Nozzle (for Hatchback)
WIPER AND WASHER: WASHER NOZZLE (for Hatchback): ON-VEHICLE INSPECTION
ON-VEHICLE INSPECTION
1. INSPECT WASHER NOZZLE
(a) Start the engine.
(b) Check where the washer fluid hits the windshield.
Standard:

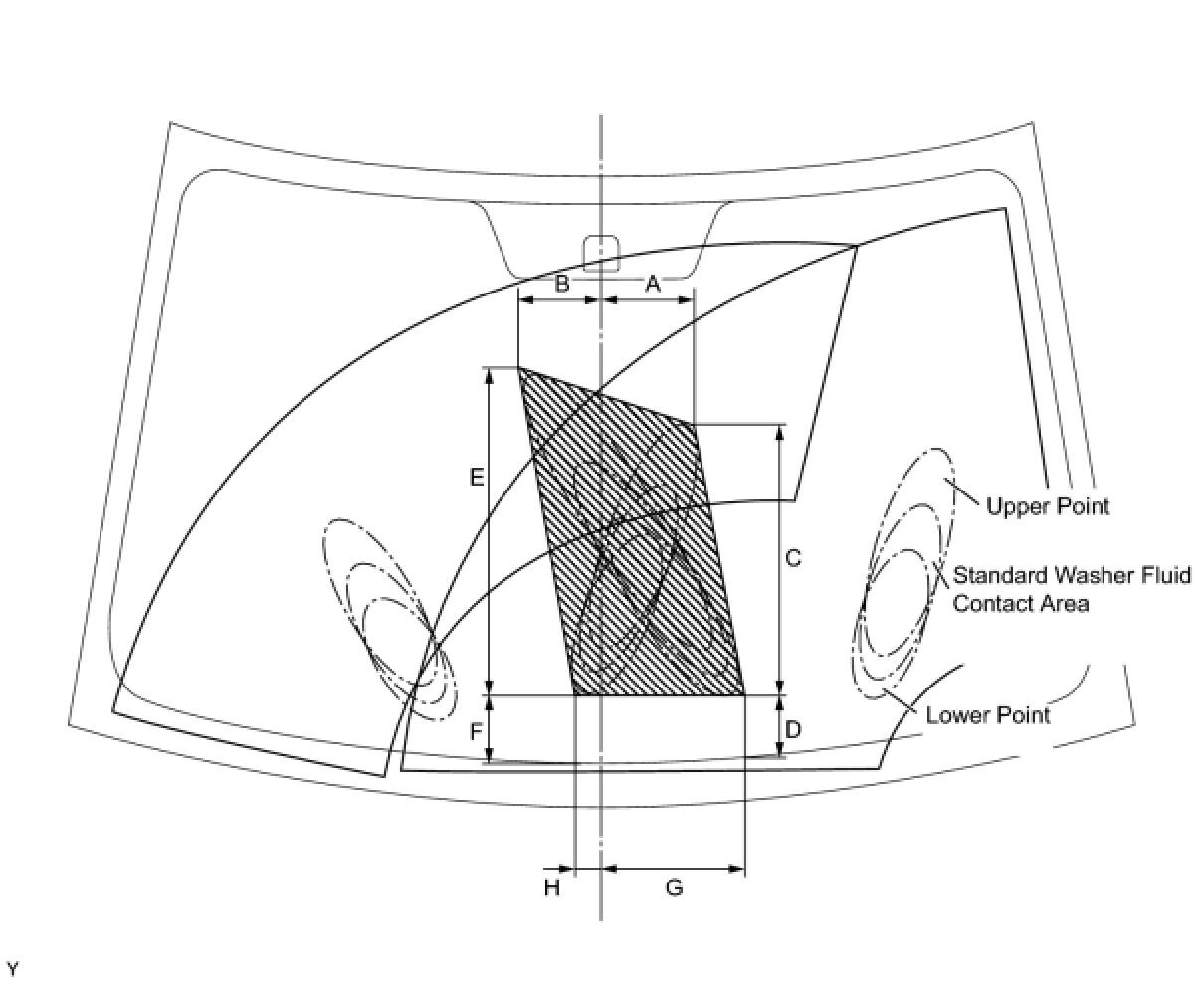

Washer fluid hits the windshield in the areas shown in the illustration.

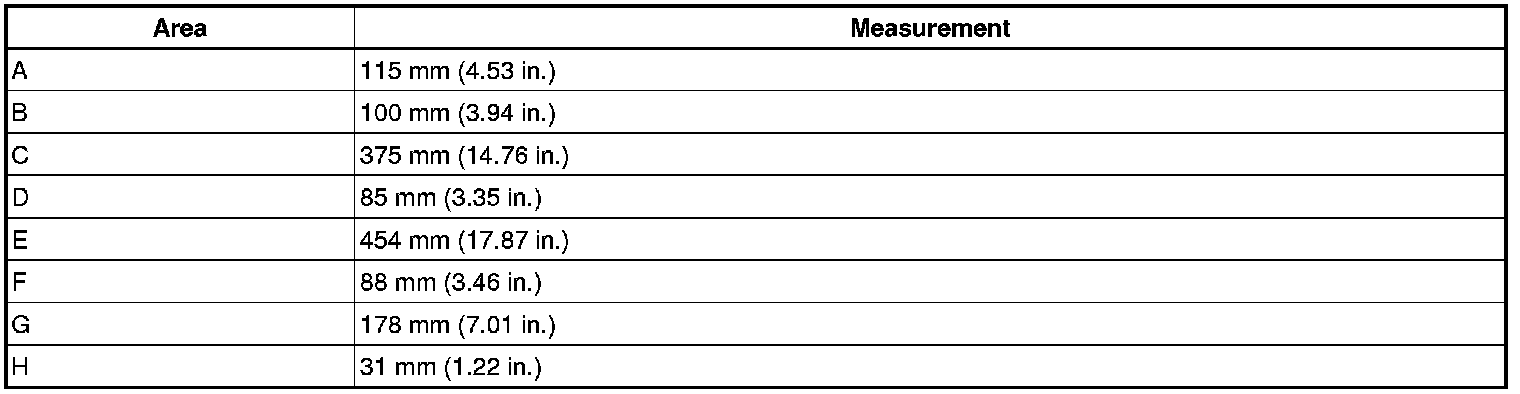

(1) Front:
Specification:

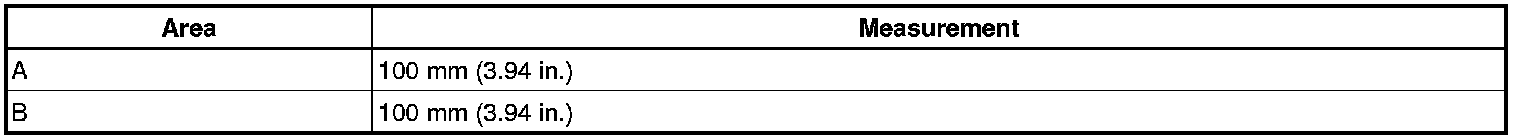

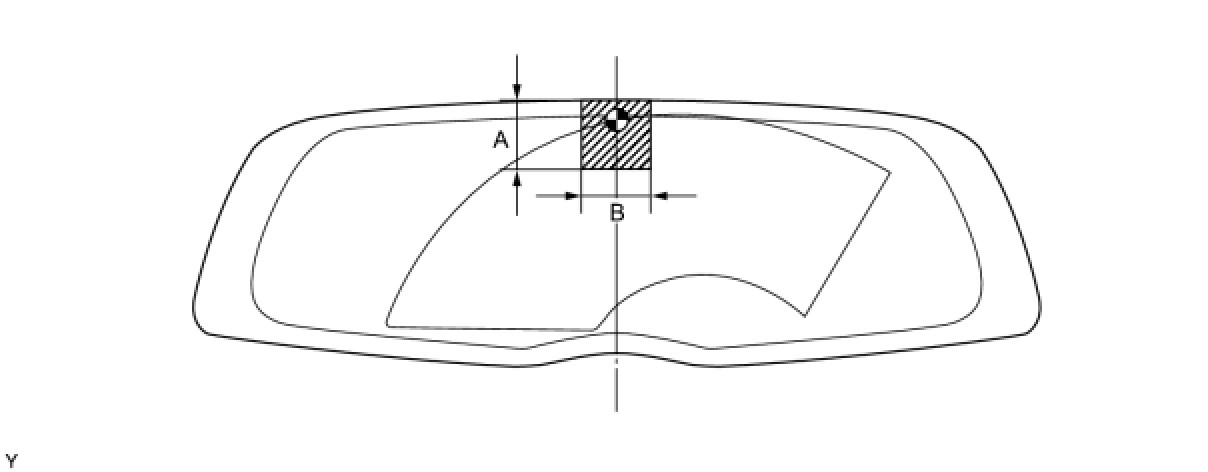

(2) Rear:
Specification:
