Washer Nozzle (for Sedan)

WIPER AND WASHER: WASHER NOZZLE (for Sedan): ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

1. INSPECT WASHER NOZZLE
(a) Start the engine.
(b) Check where the washer fluid hits the windshield.
Standard:

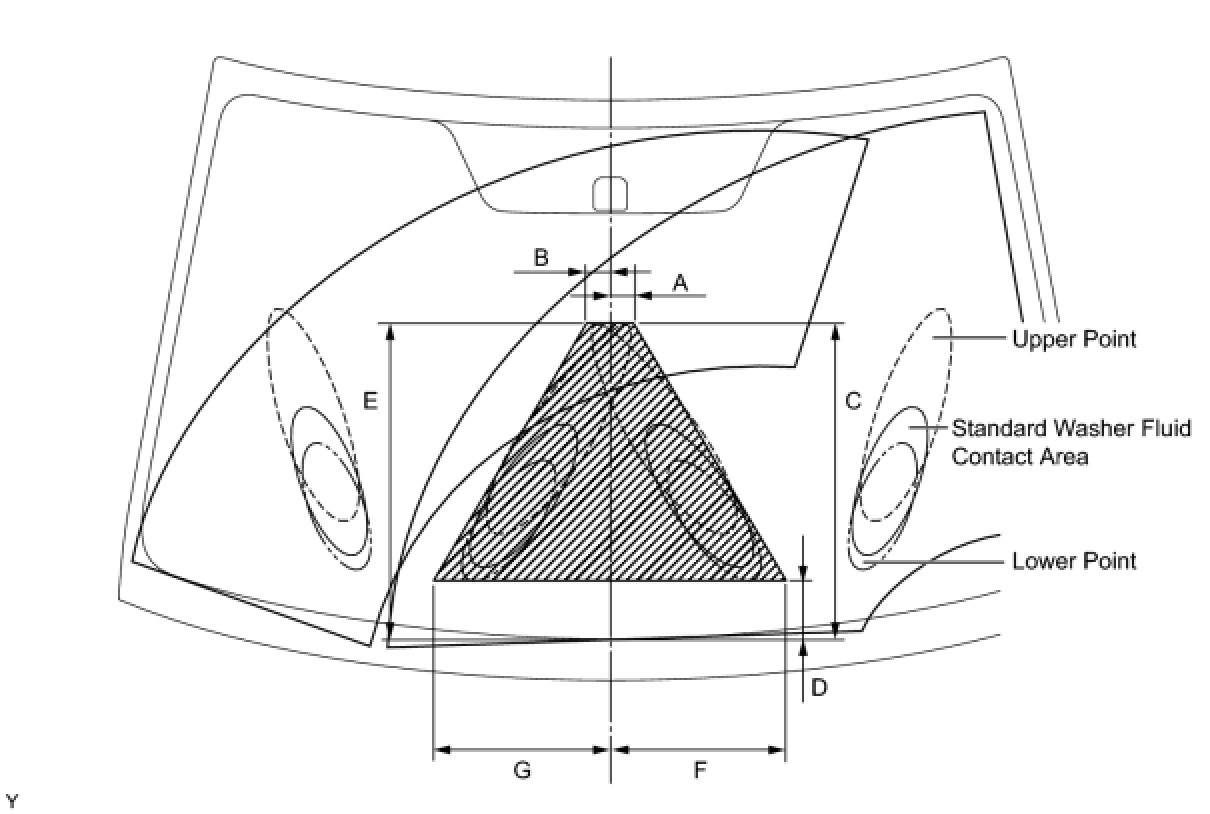

Washer fluid hits the windshield in the areas shown in the illustration.

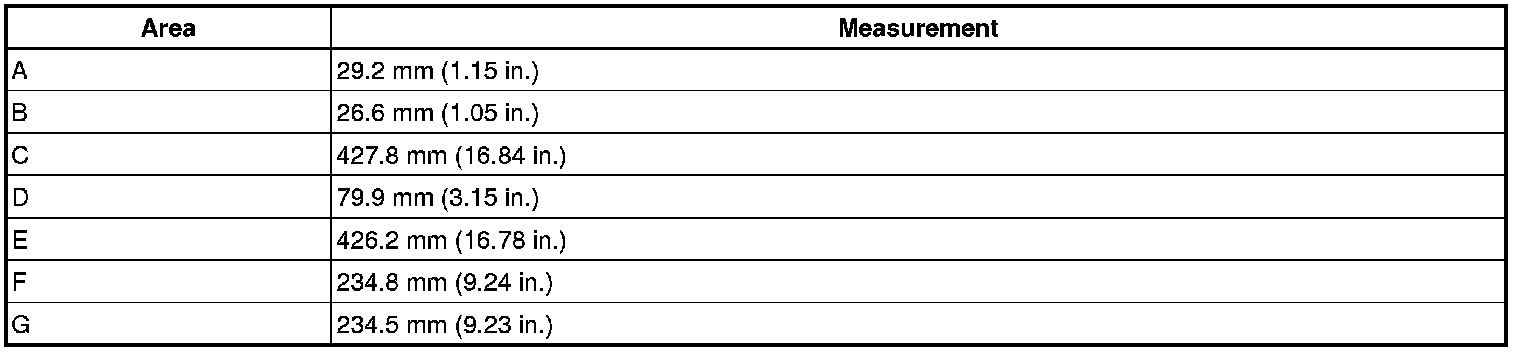

Specification:
