WIPER AND WASHER: FRONT WIPER RUBBER: INSTALLATION

INSTALLATION

1. INSTALL FRONT WIPER RUBBER

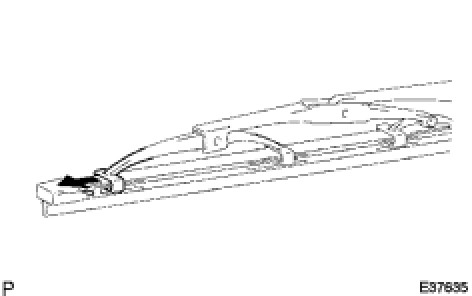

(a) Install the 2 wiper rubber backing plates onto the wiper rubber.
NOTE: Install the backing plates facing the correct direction.





(b) Install the wiper rubber with its head portion (swelled portion) facing the arm bearing.
NOTE: Push the wiper blade into the grooves of the wiper rubber to attach it completely.





2. INSTALL FRONT WIPER BLADE

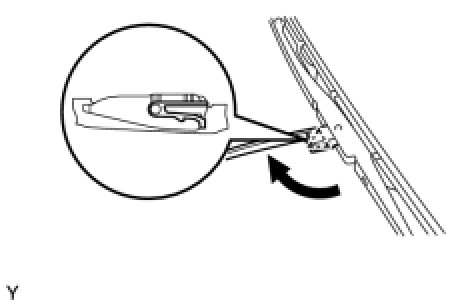

(a) Engage the claw and install the wiper blade.
