Removal

WIPER AND WASHER: FRONT WIPER RUBBER: REMOVAL

REMOVAL
HINT:
- Use the same procedures for both the RH and LH sides.
- The procedure described below is for the LH side.

1. REMOVE FRONT WIPER BLADE

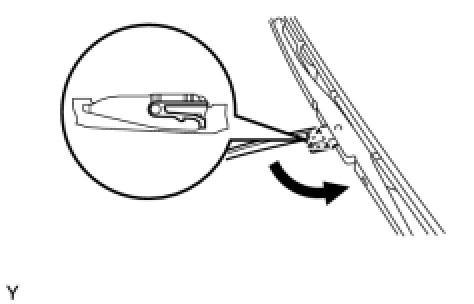

(a) Disengage the claw as shown in the illustration.
NOTE: Do not fold the wiper arm with the wiper blade removed. The arm tip may damage the windshield surface.

2. REMOVE FRONT WIPER RUBBER

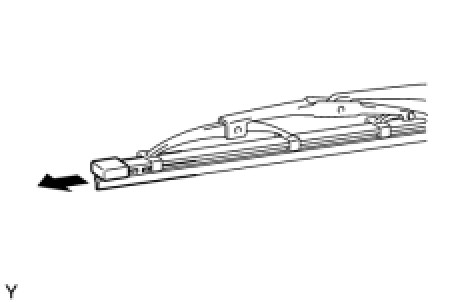

(a) Remove the wiper rubber from the wiper blade.





(b) Remove the 2 wiper rubber backing plates from the wiper rubber.
