WIPER AND WASHER: REAR WIPER RUBBER (for Hatchback): INSTALLATION

INSTALLATION

1. INSTALL REAR WIPER RUBBER

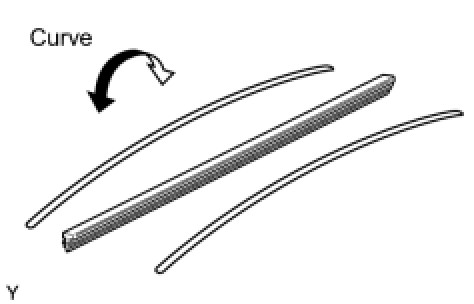

(a) Install the 2 wiper rubber backing plates onto the wiper rubber.
NOTE: Install the backing plates facing the correct direction.

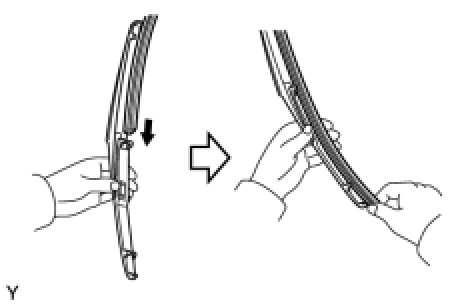

(b) Insert the rear wiper rubber from the claw position of the middle of the rear wiper blade to the end.

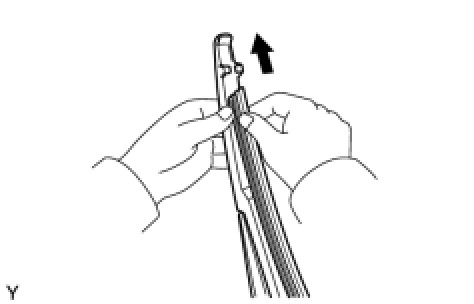

(c) After passing the rear wiper rubber through the rear end side claw, allow it to protrude from the rear end stopper and slide it through the front tip side claw.





2. INSTALL REAR WIPER BLADE ASSEMBLY

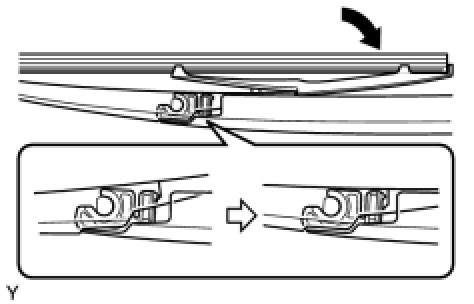

(a) Engage the claw and install the wiper blade.
