Diesel Data
: Automotive Repair
Home
>>
Toyota
>>
2011
>>
Matrix AWD L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Rear Knuckle
>>
Service and Repair
>>
Components
Components

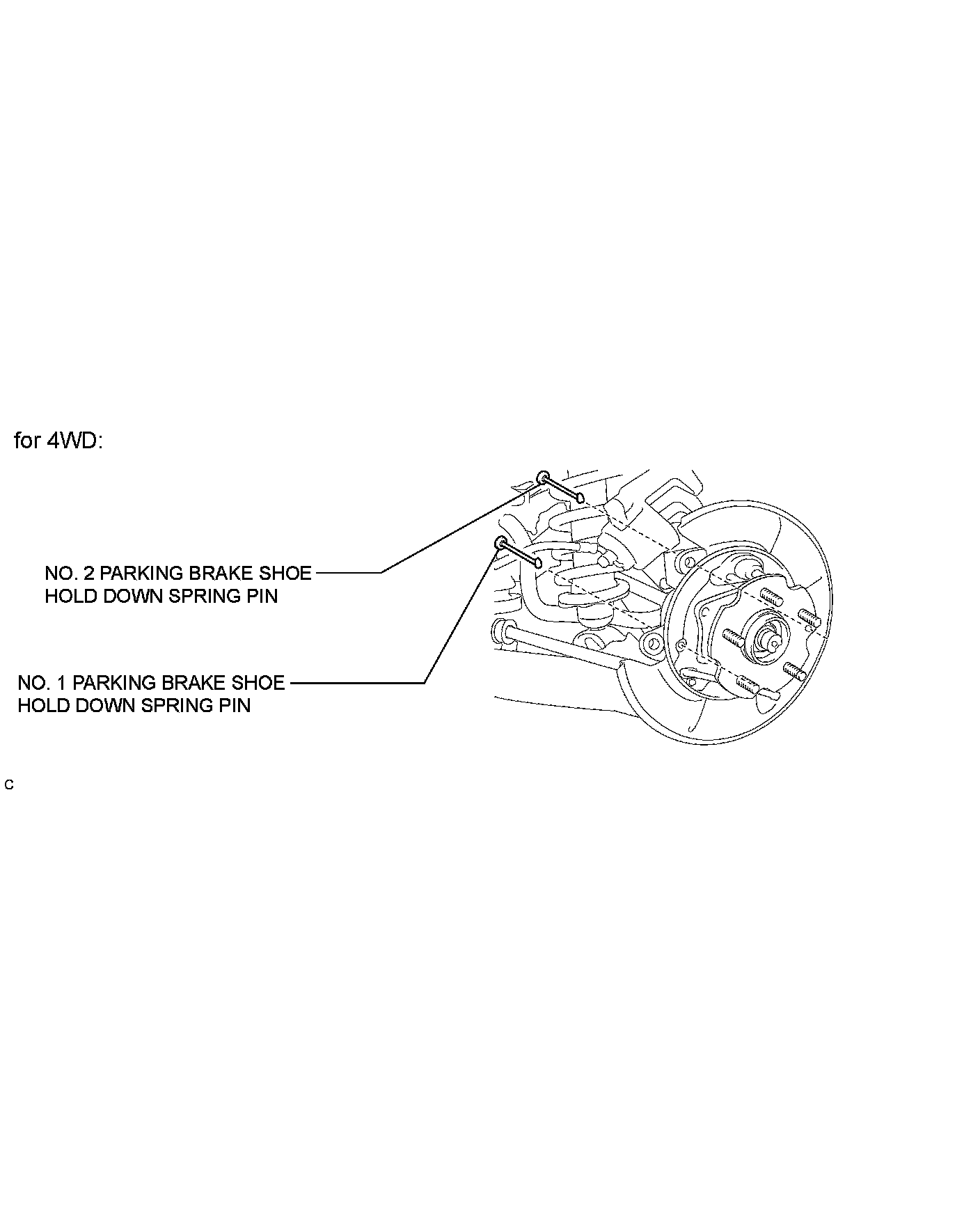

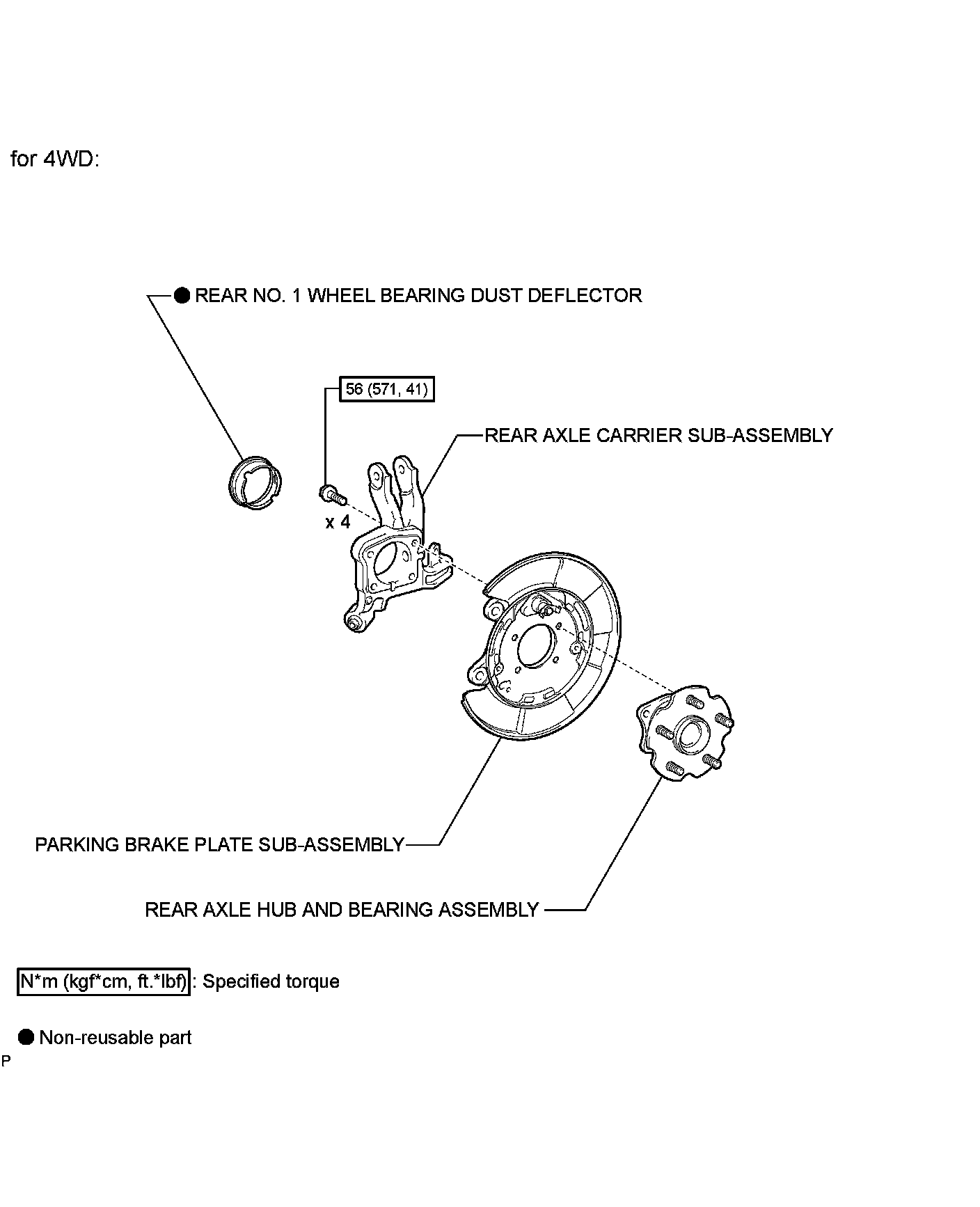

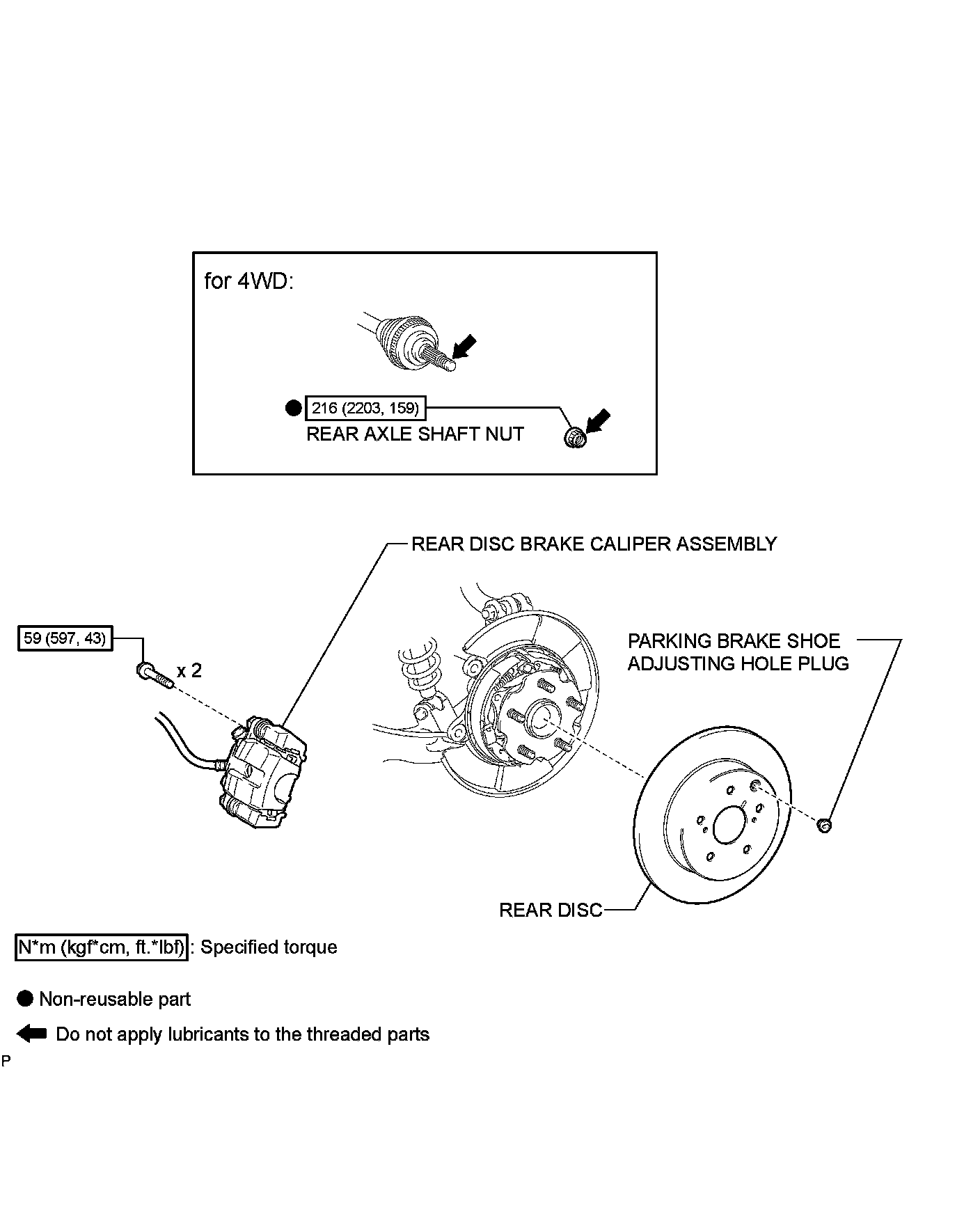

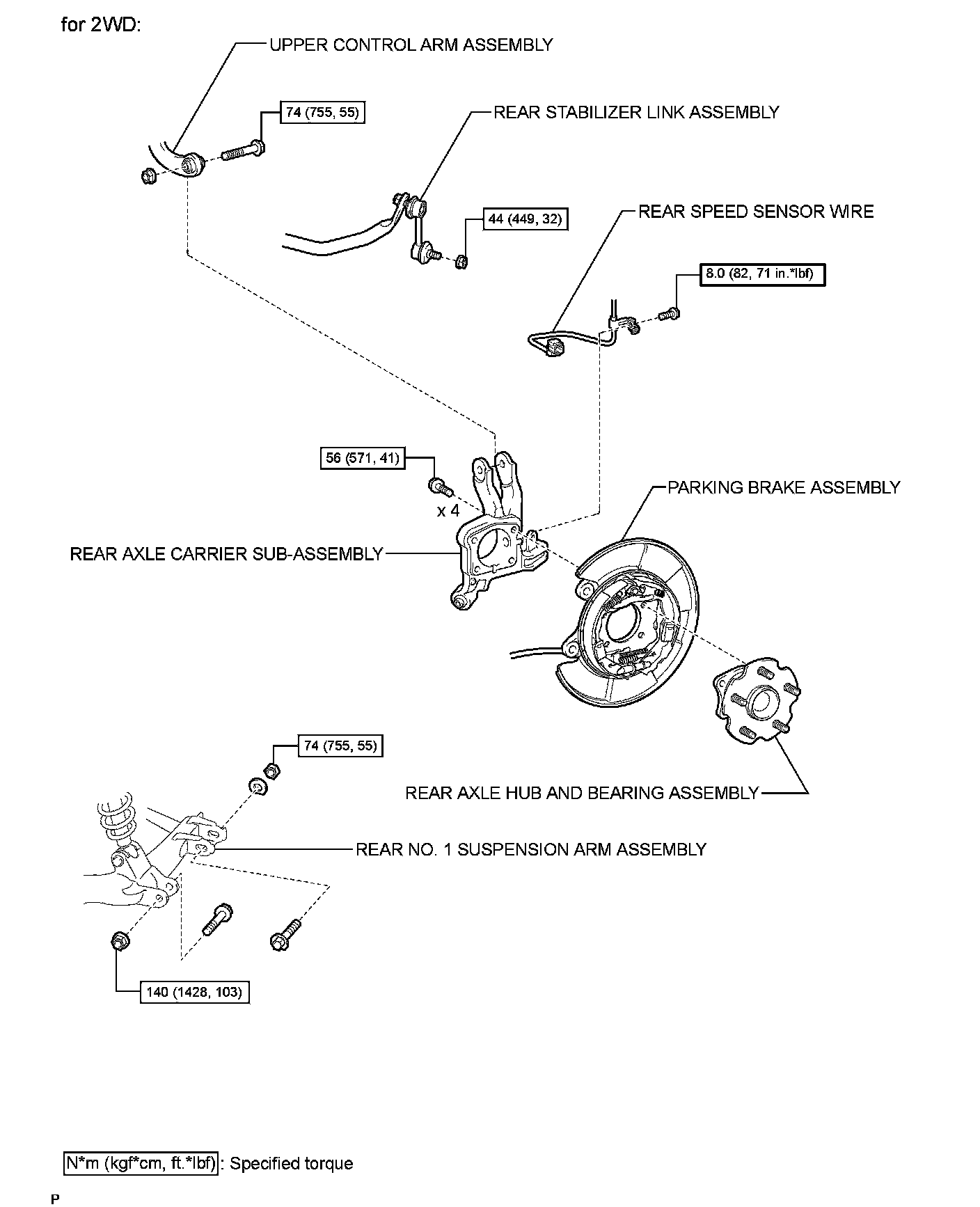

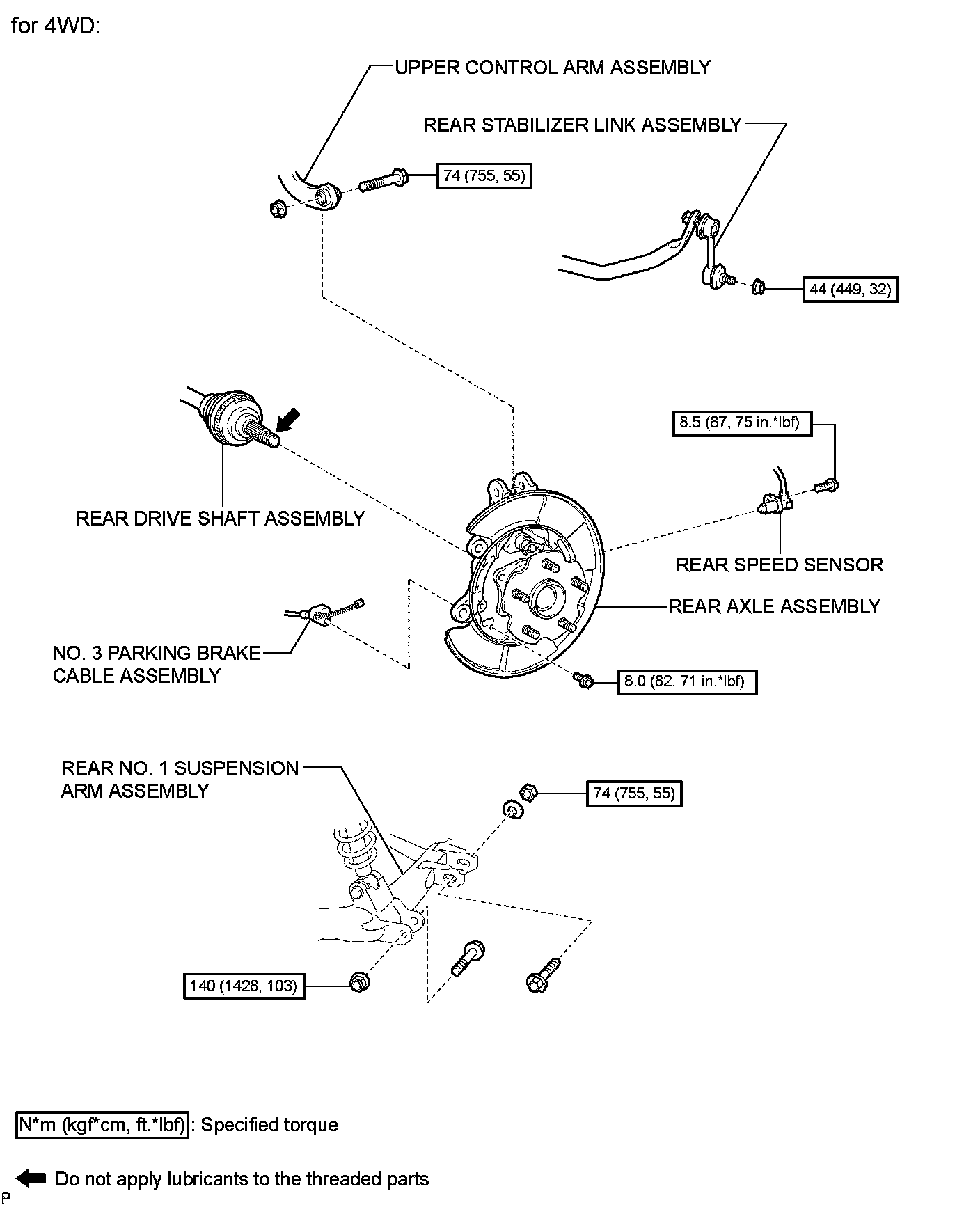

AXLE AND DIFFERENTIAL: REAR AXLE CARRIER: COMPONENTS
