Disassembly

BRAKE SYSTEM (OTHER): BRAKE PEDAL: DISASSEMBLY

1. REMOVE BRAKE PEDAL SUB-ASSEMBLY

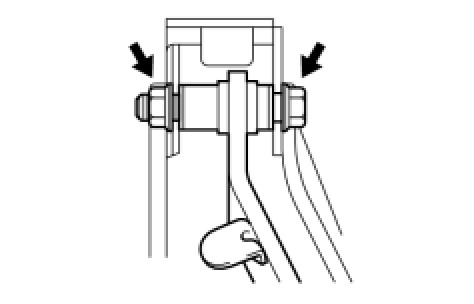

(a) Remove the bolt and nut.





(b) Remove the brake pedal sub-assembly from the brake pedal support sub-assembly.

2. REMOVE BRAKE PEDAL BUSHING

(a) Remove the 2 brake pedal bushings from the brake pedal sub-assembly.

3. REMOVE BRAKE PEDAL PAD

(a) Remove the brake pedal pad.
