Piston, Checking

Checking piston

Special tools and equipment
Micrometer 75 to 100 mm

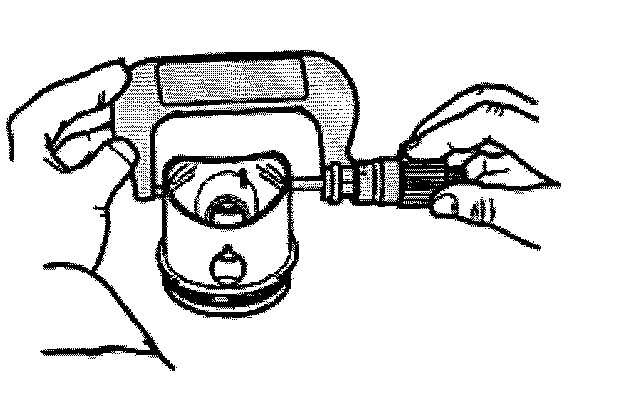

Measure pistons approx. 10 mm from the lower edge of skirt, at 90° to the piston pin axis.
Deviation from nominal dimension max. 0.04 mm
