Center Air Outlet, Removing

Center air outlet, removing

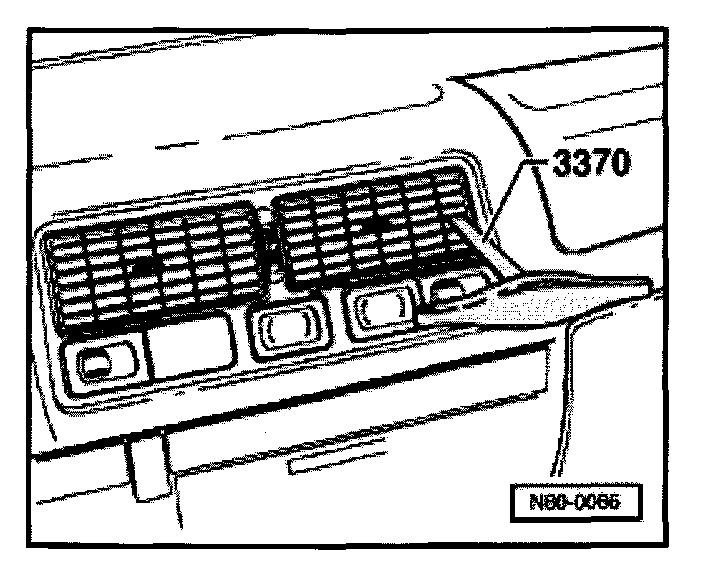

- Insert a small screwdriver between the left side of each grille louver and outlet where the louver pivots, and gently pry each louver out from opening (optional: use tool 3370).

CAUTION!

The right side of each grille louver may pivot on a small rubber grommet that may dislodge during removal. Make sure to locate grommet on pivot prior to reinstalling grille louver.

- Remove both mounting screws located inside air outlet.
- Remove air outlet
