Home >> Volkswagen >> 2003 >> Golf (1J1) L4-1.8L Turbo (AWW) >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector Station In Protective Housing, In Plenum Chamber Left (M.Y. 2000 and Later)

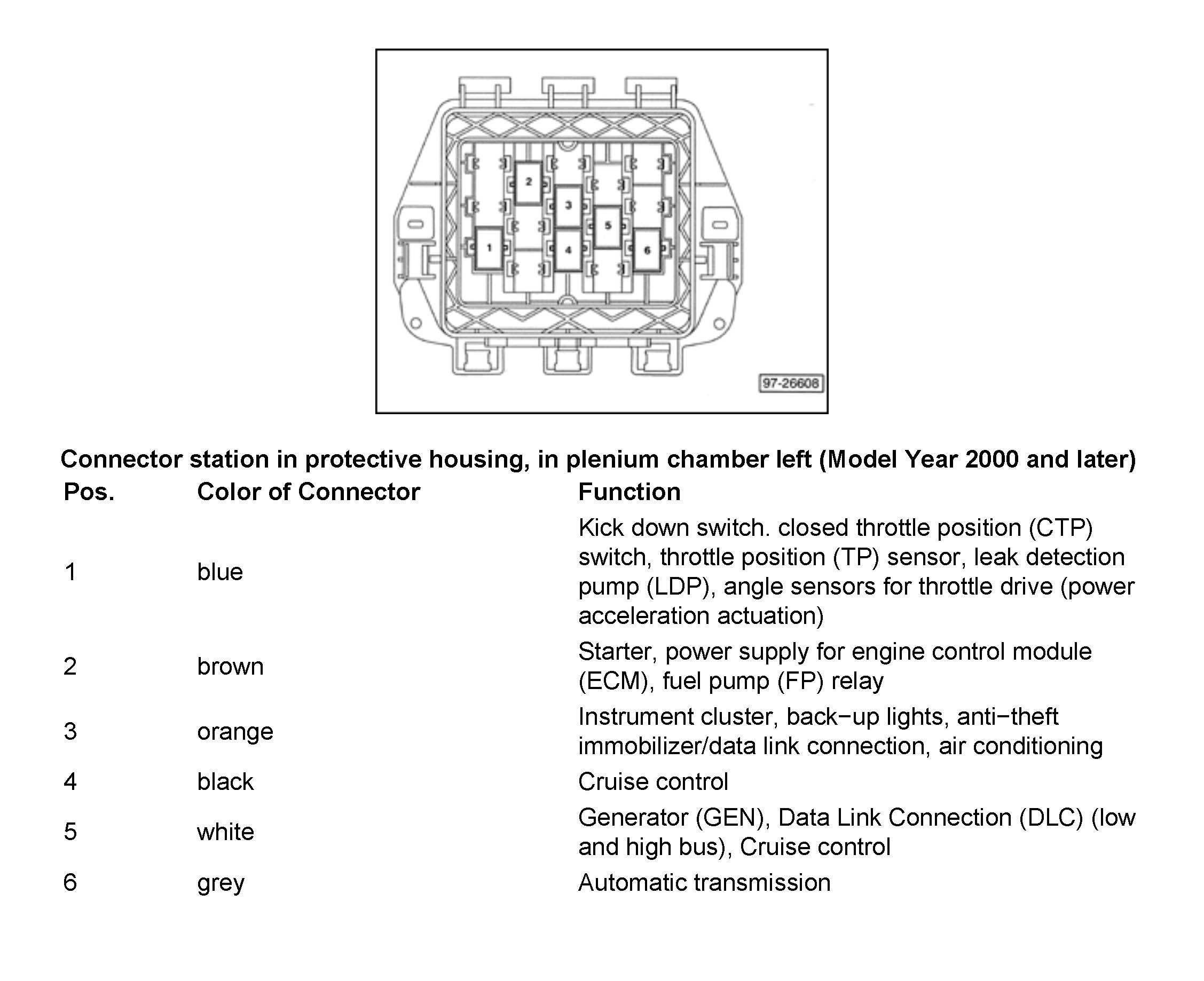

Connector Station In Protective Housing, In Plenum Chamber Left (M.Y. 2000 and Later)












Connector station in protective housing, in plenum chamber left (m.y. 2000 and later)
