Parking Light Bulb: Service and Repair

Parking Light Bulb, Replacing

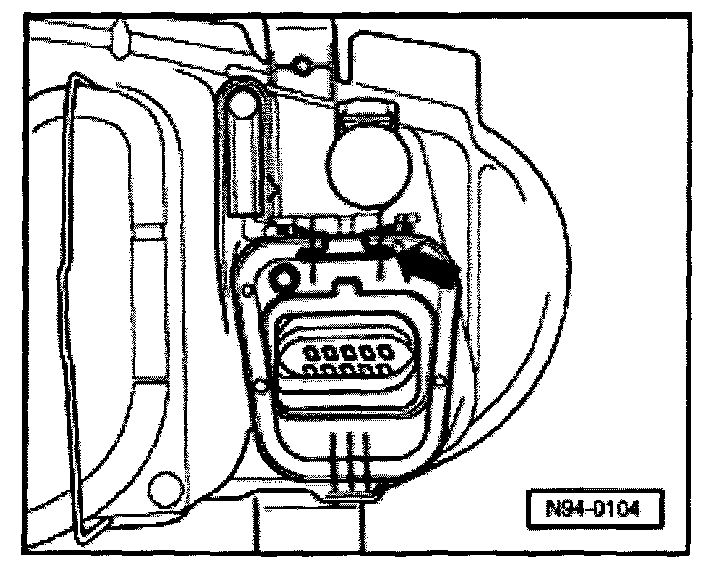

- Release spring clip -arrow- and remove sealing cover.

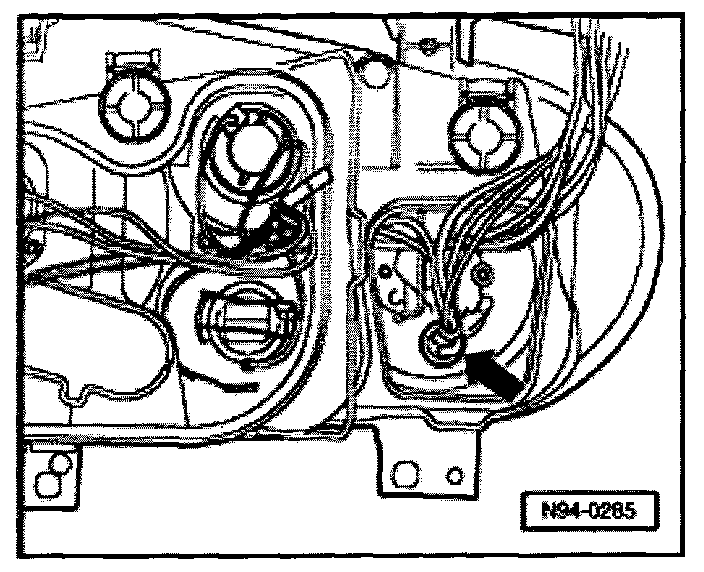

- Pull bulb with holder on connector out of reflector -arrow-.
- After changing bulb, push bulb with holder fully into the reflector onto stop.
- Install sealing cover.
- Check parking light (bulb) function.
