Wiper Blade Park Position, Adjusting (Front)

Wiper Blade Park Position, Adjusting

Special tools, testers, measuring instruments and auxiliary items required

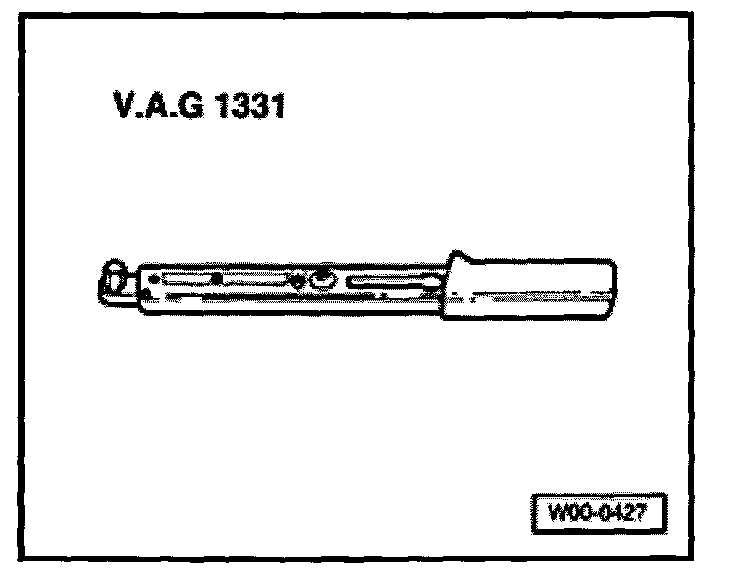

- VAG 1331 Torque wrench (or equivalent 5 - 50 Nm)

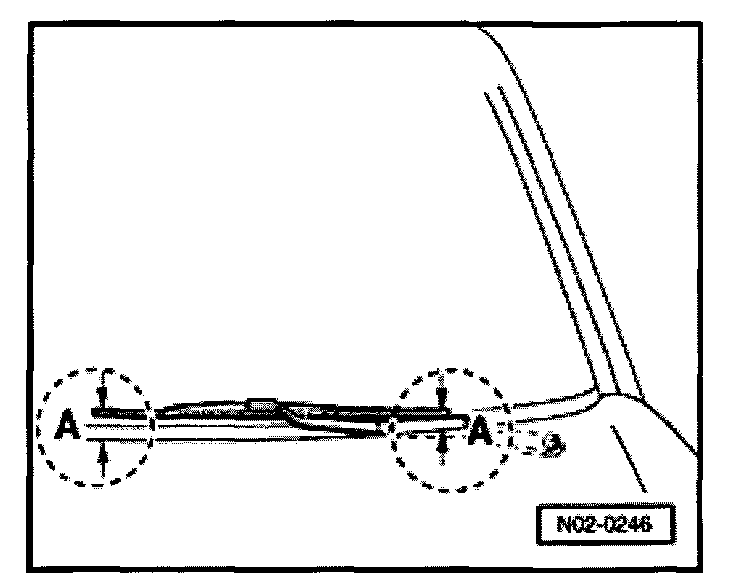

Driver's side:







A - 20 + 10 mm (measured at ends of wiper blade)

- Loosen and adjust wiper arm to achieve spec. as necessary.

Wiper arm tightening torque: 20 Nm (15 ft. lb)

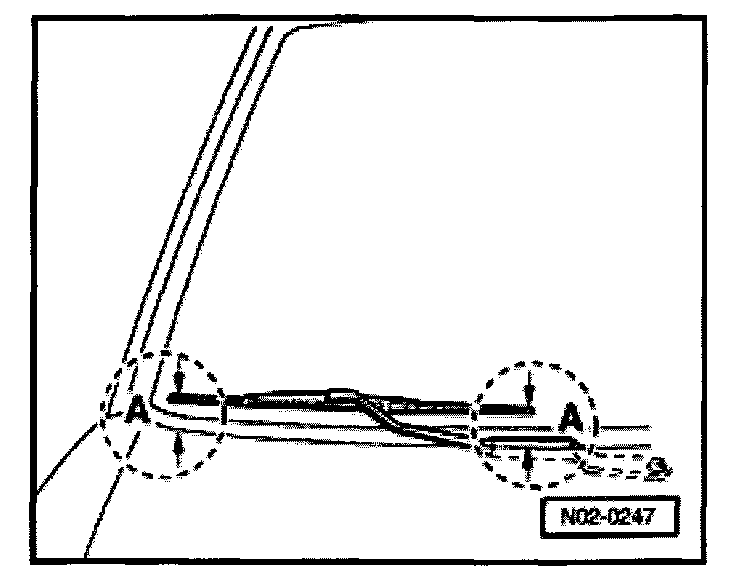

Front passenger's side:







A - 20 + 10 mm (measured at ends of wiper blade)

- Loosen and adjust wiper arm to achieve spec. as necessary.

Wiper arm tightening torque: 20 Nm (15 ft. lb)
