Clutch Plate, Removing
A/C Clutch - N25- (Zexel), Servicing
Clutch plate, removing

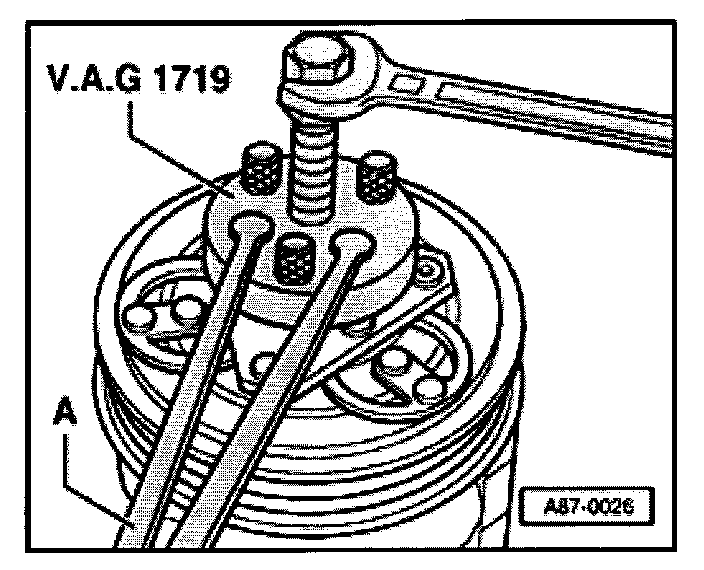

- Mount VAG 1719 and turn in center bolt to extract clutch plate.
When removing, counter-hold with 2 hole pin wrench -A- (3212 or equivalent).
A/C Clutch - N25- (Zexel), Servicing
Clutch plate, removing
- Mount VAG 1719 and turn in center bolt to extract clutch plate.
When removing, counter-hold with 2 hole pin wrench -A- (3212 or equivalent).
