Center Air Outlet, Removing

Center air outlet, removing

- First remove all switches located in center air outlet trim

CAUTION!
- Be careful not to damage instrument panel when removing switches. Protect trim in area of switch with adhesive tape before removing switch.
- Do Not pry out switches from the side. Only pull out from the top.

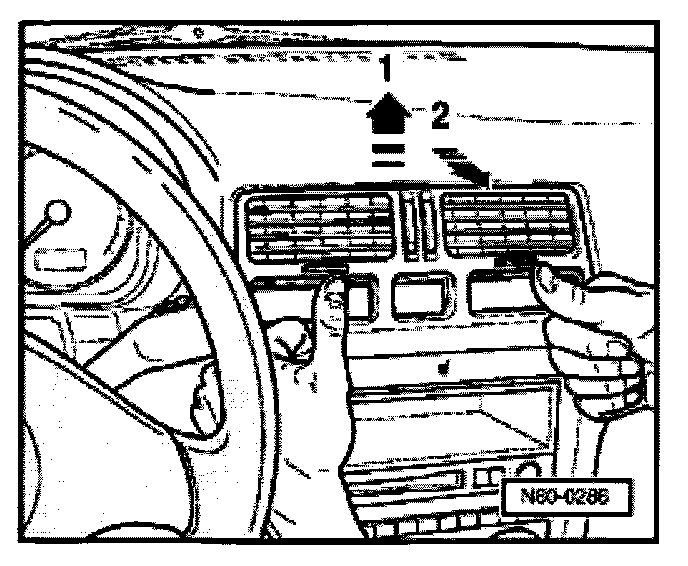

- Carefully push trim panel upwards -arrow 1- in order to disengage lower mounting clips. While doing so, pull lower portion of trim out from instrument panel -2-.

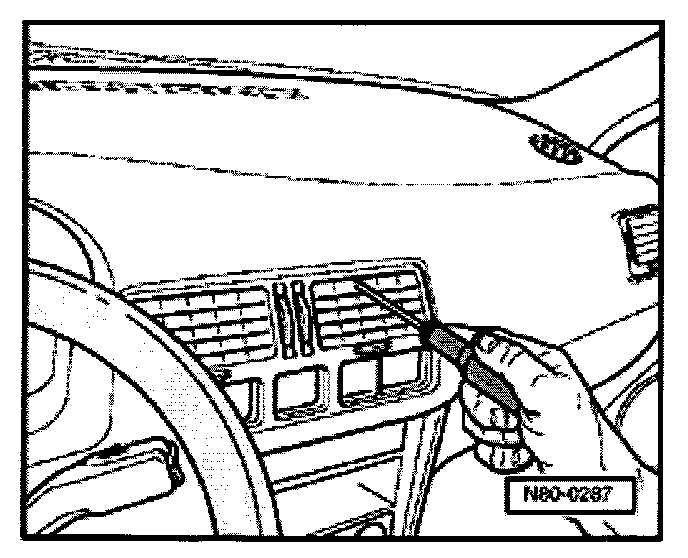

- Slide screwdriver into center of air outlet outlet and disengage upper mounting retainers.
- Pull out air outlet.
- Remove glove box
- Disconnect electrical connection for air outlet illumination.
